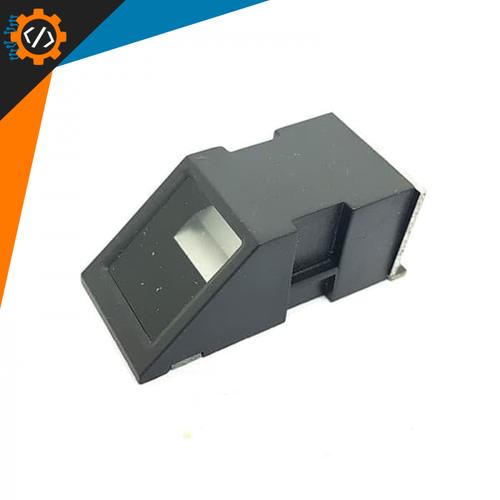

Modul Sensor Sidik Jari Fingerprint Arduino Murah Berkualitas
Rp250.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: 2. Sensor / Module
Description
Optical fingerprint / biometeric sensor module – FPM10A DY50 with TTL/UART interface with full firmware support and a windows fingerprint capture software.
Applications
Biometric Identification
Security systems
Identification systems
Electronic Voting Systems
Que management systems
Mobile SIM issuing systems
Technical Specifications
Power supply voltage: 3.3v
Supply current: working current: <120mA
Peak current: <140mA
The time of fingerprint image input: < 1 seconds
The window size: 14 x 18 mm
Profile: 256 bytes
Template file: 512 bytes
Storage capacity: 127
False accept rate (FAR): < 0.001% (safety grade 3)
FRR (FRR): < 1% (safety grade 3)
The search time: < 1 seconds (1:500, mean)
Computer interface: UART (TTL logic level)
The communication baud rate (UART): (9600 x N) BPS where N=1 ~ 12 (the default value of N=6, namely 57600bps)
Working environment: temperature: -20°C to +50°C
Relative humidity: 40%RH to 85%RH (no treatment)
Storage conditions: temperature: -40°C to +85°C
Relative humidity: < 85%H (no treatment)
Dimensions (L * W * H): 46.25 x 20.4 x 18.1mm
Pinouts
NC
NC
VCC (3.3V Power)
TXD (Output)
RXD (Input)
GND (Power and Signal Ground)
Optical fingerprint / biometeric sensor module – FPM10A DY50 with TTL/UART interface with full firmware support and a windows fingerprint capture software.
Applications
Biometric Identification
Security systems
Identification systems
Electronic Voting Systems
Que management systems
Mobile SIM issuing systems
Technical Specifications
Power supply voltage: 3.3v
Supply current: working current: <120mA
Peak current: <140mA
The time of fingerprint image input: < 1 seconds
The window size: 14 x 18 mm
Profile: 256 bytes
Template file: 512 bytes
Storage capacity: 127
False accept rate (FAR): < 0.001% (safety grade 3)
FRR (FRR): < 1% (safety grade 3)
The search time: < 1 seconds (1:500, mean)
Computer interface: UART (TTL logic level)
The communication baud rate (UART): (9600 x N) BPS where N=1 ~ 12 (the default value of N=6, namely 57600bps)
Working environment: temperature: -20°C to +50°C
Relative humidity: 40%RH to 85%RH (no treatment)
Storage conditions: temperature: -40°C to +85°C
Relative humidity: < 85%H (no treatment)
Dimensions (L * W * H): 46.25 x 20.4 x 18.1mm
Pinouts
NC
NC
VCC (3.3V Power)
TXD (Output)
RXD (Input)
GND (Power and Signal Ground)
