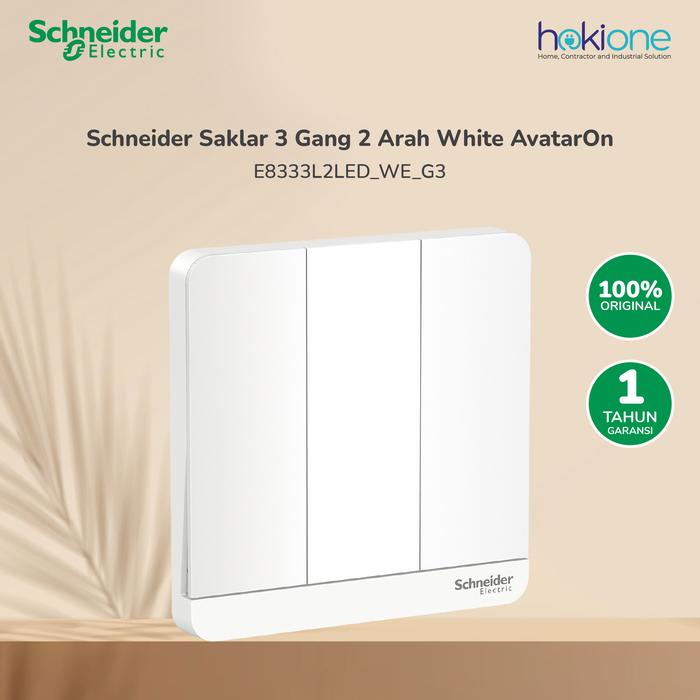

Schneider AvatarOn Saklar Lampu 3 Gang 2 Arah White - E8333L2LED_WE_G3

AvatarOn
Saklar lampu stylish dengan desain cover yang bisa dipersonalisasi sesuai dengan desain rumah.

Spesifikasi:
product or component type: Switch
device application: Control
load type:
- Fluorescent lamp
- Resistive
- Inductive
- Incandescent lamp
colour tint: White
device presentation: Complete product
rated current: 16 AX at 250 V AC 50/60 Hz
switch function: 1-pole 2-way
number of gangs: 3 gangs
number of rocker: 3
clamping connection capacity:
- 3 x 2.5 mm for solid cable(s)
- 3 x 2.5 mm for stranded cable(s)
- 4 x 1.5 mm for solid cable(s)
- 4 x 1.5 mm for stranded cable(s)
connections - terminals: Brass terminal
local signalling: Off: LED indicator, LED (amber)
material:
- Polycarbonate: grid plate
- Polycarbonate: base
- Polycarbonate: dolly
- Polycarbonate: frame
- Polycarbonate + GF 20 %: actuator
device mounting: Surface, Flush
width: 86 mm
height: 86 mm
depth: 34.2 mm
IP degree of protection: IP20
maximum ambient air temperature for operation: 45 C
relative humidity: 095 %
environmental characteristic: UV resistant
operating altitude: 2000 m

Kode : SC.E8333L2LED_WE_G3
standards: MS IEC 60669-1, SS 227-1, IEC 60669-1, BS EN 60669-1
