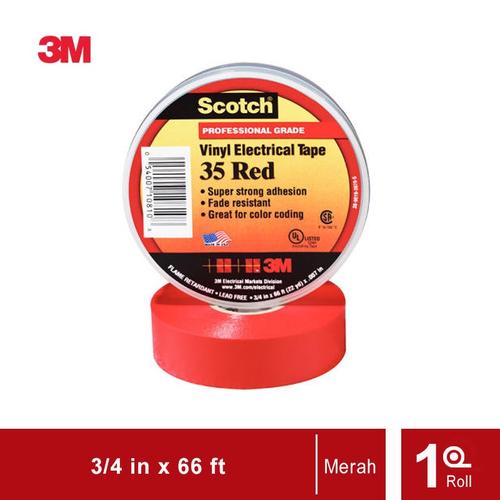

Isolasi Listrik 3M Scotch 35 Vinyl Electrical - Merah - (19mm x 20m)

Terjual 30
rating 5 (15 ulasan)
Diskusi (1)
Rp52.000
  • Kondisi: Baru
  • Berat: 100 Gram
  • Kategori: Isolasi Listrik
  • Etalase: Amplas dan Tape Industri
Ready Warna Merah

spesifikasi:
3M Scotch Vinyl Electrical Tape 35 is a 7 mil (0,178 mm) polyvinyl chloride (PVC) colorcoding tape. Outstanding electrical and mechanical properties make this tape excellent for use in phase identification, color coding of motor leads and piping systems, and for marking safety areas.

Scotch Tape 35 operates over a wide range of temperatures up to 221F (105C); applies smoothly and conforms well above 32F (0C).

Applications
Color coding for phase identification, job identification and safety
Insulating electrical wiring
Protecting electrical conductors, motor leads and piping from moisture, alkalis, acids, corrosion, abrasion and weather

Installation
Apply in half-lapped layers with sufficient tension to conform and produce a uniform covering. In most applications, this tension will reduce the tape width to approximately 60% of its original width.
On a pigtail splice, wrap the tape beyond the end of the wire and then fold back and over-wrap, leaving a protective cushion to resist cut-through.
Wrap uphill, taping from a smaller diameter to a larger diameter surface. Apply the tape with no tension on the last wrap to prevent flagging.

Specifications
Scotch Tape 35 is based on polyvinyl chloride (PVC) and/or its copolymers and has a rubber-based, pressure-sensitive adhesive. The tape shall be 7 mils thick, and be UL Listed and marked per UL Standard 510 as Flame-Retardant. The tape shall be compatible with synthetic cable insulations, jackets and splicing compounds. The tape will remain stable and will not telescope more than 0.1 inches when maintained at temperatures below 122F (50C)
Harga Per Each
