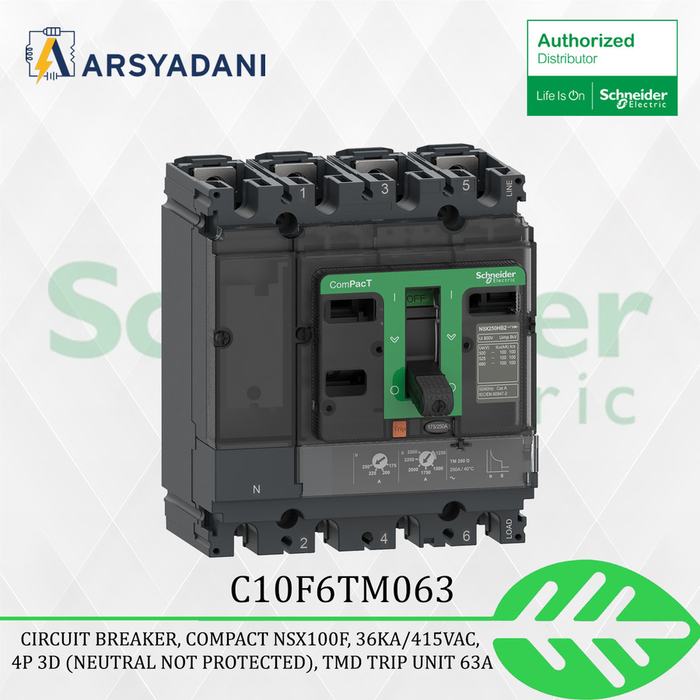

SCHNEIDER - C10F6TM063 - NSX100F 36kA/415VAC 4 poles 3D TMD trip unit 63A - 1pcs

Circuit breaker, ComPacT NSX100F, 36kA/415VAC, 4 poles 3D (neutral not protected), TMD trip unit 63A / C10F6TM063

range : ComPacT new generation
product name : ComPacT NSX new generation
device short name : NSX100F
product or component type : Circuit breaker
device application : Distribution
poles description : 4P
protected poles description : 3D
neutral position : Left
[In] rated current : 63 A at 40 °C
[Ue] rated operational voltage : 690 V AC 50/60 Hz
network type : AC
network frequency : 50/60 Hz
suitability for isolation : Yes conforming to EN/IEC 60947-2
utilisation category : Category A
[Icu] rated ultimate short-circuit breaking capacity :
85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Performance level : F 36 kA 415 V AC
trip unit name : TM-D
trip unit technology : Thermal-magnetic
trip unit protection functions : LI
control type : Toggle
Circuit breaker mounting mode : Fixed
