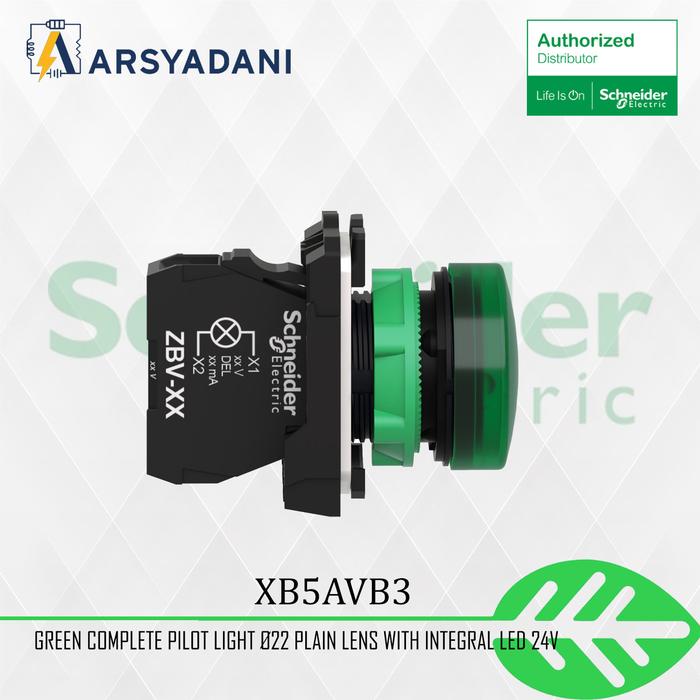

SCHNEIDER - XB5AVB3 - green complete pl - Ø22 plain lens with integral LED 24V Cable

Main
Range of product
Harmony XB5
Product or component type
Pilot light
Device short name
XB5
Bezel material
Dark grey plastic
Fixing collar material
Plastic
Head type
Standard
Mounting diameter
22.5 mm
Sale per indivisible quantity
1
Shape of signaling unit head
Round
Cap/operator or lens colour
Green
Operator additional information
With plain lens
Light source
Universal LED
Bulb base
Integral LED
Light source colour
Green
[Us] rated supply voltage
24 V AC/DC at 50/60 Hz
Device presentation
Complete product
Complementary
Height
42 mm
Width
30 mm
Depth
54 mm
Terminals description ISO n°1
(X1-X2)PL
Net weight
0.038 kg
Resistance to high pressure washer
7000000 Pa at 55 °C, distance : 0.1 m
Connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1
[Ui] rated insulation voltage
250 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage
4 kV conforming to IEC 60947-1
Signalling type
Steady
GCR BRIDGE
XB5AVCUST03
Compatibility code
XB5
Supply voltage limits
19.2…30 V DC
21.6…26.4 V AC
Current consumption
18 mA
Service life
100000 h at rated voltage and 25 °C
Surge withstand
1 kV conforming to IEC 61000-4-5
