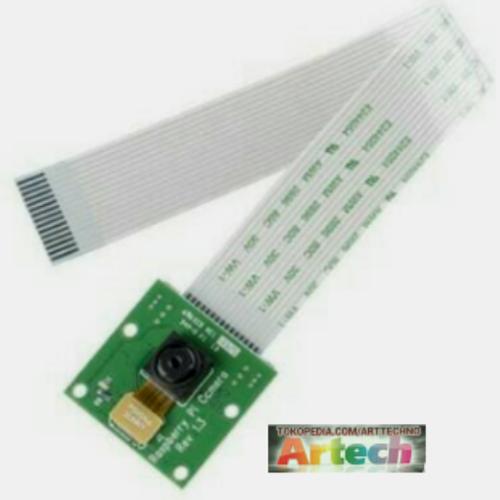

Raspberry PI 5MP Camera Board Module 500W Pixels AF30
Rp48.300
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: ----------RASPBERRY PI ACC DLL
jika berkenan klik
*favoritkan*
toko art techno ya kak agar cari produk kembali / berbelanja kembali mudah di cari
ready
Raspberry PI 5MP Camera Board Module 500W Pixels
5 megapixel native resolution sensor-capable of 2592 x 1944 pixel static images
Supports 1080p30, 720p60 and 640x480p60/90 video
Camera is supported in the latest version of Raspbian, Raspberry Pi's preferred operating system
ensor type: OmniVision OV5647 Color CMOS QSXGA (5-megapixel)
Sensor size: 3.67 x 2.74 mm (1/4" format)
Pixel Count: 2592 x 1944
Pixel Size: 1.4 x 1.4 um
Lens: f=3.6 mm, f/2.9
Angle of View: 54 x 41 degrees
Field of View: 2.0 x 1.33 m at 2 m
Full-frame SLR lens equivalent: 35 mm
Fixed Focus: 1 m to infinity
Video: 1080p at 30 fps with codec H.264 (AVC)
Up to 90 fps Video at VGA
Board size: 25 x 24 mm
Because the focal length of the lens is roughly the same as the width of the sensor, it is easy to remember the field of view: at x meters away, you can see about x meters horizontally, assuming 4x3 stills mode. Horizontal field of view in 1080p video mode is 75% of that (75% H x 55% V sensor crop for 1:1 pixels at 1920x1080).
References: Focal length and f-stop measurements ,depth of field & angle of view calculators sensor info f-stop measurement
