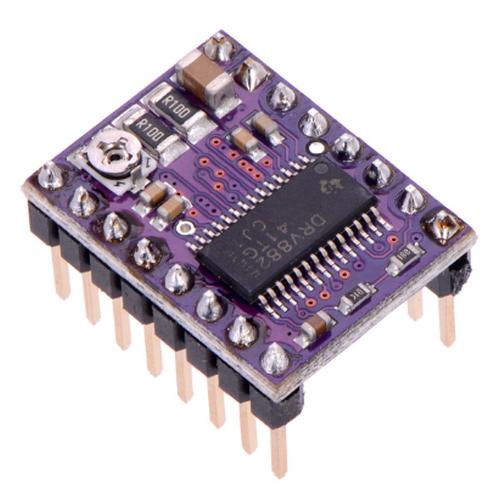

DRV8825 Stepper Motor Driver

Jadilah Yang Pertama Mengulas Produk Ini87x Dilihat

Harga

Rp40.000

Jumlah

Stok tersedia

Min. pembelian 1pcs.

Tulis catatan untuk penjual

Contoh: Warna Putih, Size M

Info Produk

Berat

100gr

Kondisi

Baru

Asuransi

Opsional

Etalase

Sparepart 3D Printer

Deskripsi

Ulasan (0)

Diskusi (0)

Rekomendasi

Deskripsi

Ulasan (0)

Diskusi (0)

Rekomendasi

Deskripsi DRV8825 Stepper Motor Driver

Features
1. maximum current of 2.5A.
2. up to 32 segments.
3. 4-layer PCB, better heat dissipation.
4. the chip resistance is smaller, less heat, and better heat dissipation.


Size: 1.5X2mm
Subdivision: 1,1 / 2,1 / 4,1 / 8,1 / 16,1 / 32
Manufacturing Process: SMT placement machine higher manufacturing, non-manual welding, yield more stable performance

Supported 3d printers :Prusa Mendel, ultimaker, printbot, makerbot like.
You can refer back Arduino code, direct drive motors

This breakout board for TIs DRV8825 microstepping bipolar stepper motor driver features adjustable current limiting, over-current and over-temperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 V to 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).
For more infomtion :https://www•pololu•com/product/21332
