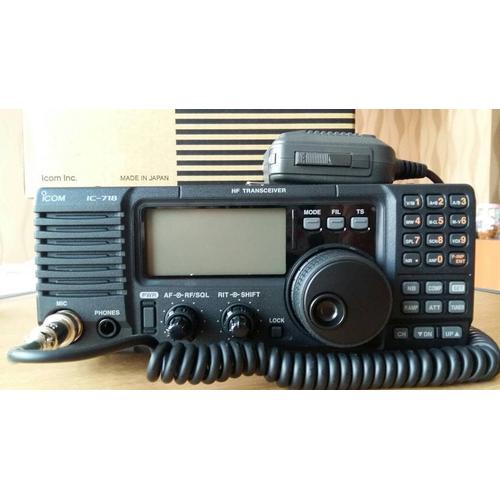

Icom IC-718 HF Amateur Transceivers

Mohon untuk konfirmasi kesediaan barang dahulu sebelum melakukan pemesanan melalui pesan atau WA 089682791948. Pengiriman hari Senin-Jumat pesanan kami terima sebelum jam 15.30. Hari Sabtu/Minggu/Hari libur nasional hanya open order, tidak ada pengiriman. Harap menambahkan biaya asuransi untuk kemanan pengiriman, apabila ada kehilangan pada saat pengiriman diluar tanggung jawab kami.

Dalam box : Unit Rig, Mic, Bracket, kabel DC, manual book

General
Frequency Range: RX 0.030-29.999999 MHz (guaranteed range: 0.5-29.999999 MHz TX 1.800-1.999999 MHz, 3.500-3.999999 MHz (varies with version)
7.000-7.300000 MHz, 10.100-10.150000 MHz
14.000-14.350000 MHz, 18.068-18.168000 MHz
21.000-21.450000 MHz, 24.890-24.990000 MHz
28.000-29.700000 MHz
Mode: USB, LSB, CW, RTTY (FSK), AM
No. of memory channels: 101 (99 regular, 2 scan edges)
Frequency resolution: 1 Hz
Frequency stability: Less than 200 Hz from 1 minute to 60 minutes after power on.
After that rate of stability less than 30 Hz/hr. at +25 (+77F).
Temperature fluctuations 0C to +50C (+32F to +122F) less than 350 Hz.
Power supply requirement: 13.8 V DC 15% (negative ground)
Current drain (at 13.8 V DC):
Receive: stand-by 1.3 A ; max audio 2.0 A
Transmit: max. power 20.0 A
Usable temperature range: -10C to +60C (+14F to +140F)
Antenna connector: SO-239 (50 ohm)
Dimensions: 240mm (W) x 95mm (H) x 239mm (D)
(projections not included) 9 7/16in (W) x 3 3/4in (H) x 9 13/32in (D)
Weight: 3.8 kg; 8 lb 6 oz
ACC connector: 13-pin
REMOTE connector: 2-conductor 3.5 (d) mm; (1/8")
