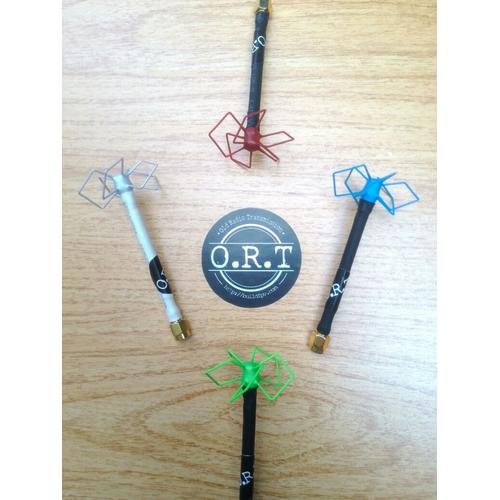

Gambar ORT Cocktail Antenna 5.8Ghz - SMA, Biru dari BuildFPV Kota Depok Tokopedia
Gambar ORT Cocktail Antenna 5.8Ghz - SMA, Biru dari BuildFPV Kota Depok 1 Tokopedia
Gambar ORT Cocktail Antenna 5.8Ghz - SMA, Biru dari BuildFPV Kota Depok 2 Tokopedia
Gambar ORT Cocktail Antenna 5.8Ghz - SMA, Biru dari BuildFPV Kota Depok 3 Tokopedia
Gambar ORT Cocktail Antenna 5.8Ghz - SMA, Biru dari BuildFPV Kota Depok 4 Tokopedia
ukuran: 2 varian
warna: 5 varian

ORT Cocktail Antenna 5.8Ghz - SMA, Biru

Terjual 100+
rating 4.9 (55 ulasan)
Diskusi (31)
Rp180.000
Cashback 5%
  • Kondisi: Baru
  • Berat: 50 Gram
  • Kategori: Part RC
  • Etalase: Antenna
Ort Cocktail Antenna 5.8ghz

Freq Channel : 5600 ~ 6000 ghz

Gain (dBi) : 1.3 1.5 dBic

Axial Ratio : ~.79

Swr / S11 : 1 :1.5

Polarization : Circularly Polarized - RHCP

Gain Pattern : Omni Directional (cover signal in all direction)

Connector : Available in SMA


MADE IN INDONESIA, checked & tuned for each Antenna. Antenna tuning were specified by 2 point, 1st is for SWR or S11 to ensure antenna is work best with our FPV system and 2nd is geometry tuned for circularity(axial ratio), ORT Antenna is tuned with both point to provide you best circularity for reject noise, less random flicker & superb clarity on high speed turn also longer range than your default antenna, we had tested 5.8ghz omni to omni with as further as 3~4km(500mw) on relative noisy city environtment and much further if match on diversity receiver with our 3 or 5 turn helical.

ORT Cocktail is all in one solution for casual type flyer, you just cant go wrong to put this on almost everything, wings, multirotor, racing quad, uav, any platform that need clear footage on any day of flying. Absolutely high axial ratio omnis to provide you clear video in all direction, matched it with another cocktail, ORT Goggles Edition for casual all around flying scenery or 3 turn helical for short to medium range and 5 turn helical for superior clarity on long range flying. You just cant go wrong with ORT Cocktail, one of our best omni out there.

What we have here is:

5 leaf elements to get best noise rejection than just with 3 & 4 leaf elements
Special high frequency cable to ensure absolutely tiny losses on 5G8 freq.
Cool & funky looking antennas, what else can you ask?

Note : Sebutkan warna yang di inginkan ketika memesan antenna ini.
