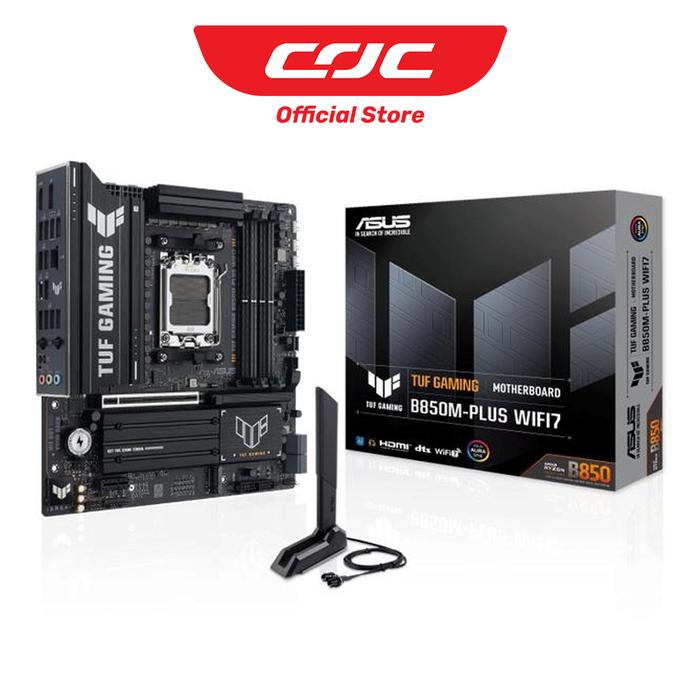

ASUS TUF GAMING B850M-PLUS WIFI7

Model
TUF GAMING B850M-PLUS WIFI7


CPU
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*


Chipset
AMD B850 Chipset


Memory
4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)


Graphics
1 x DisplayPort**
1 x HDMI port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.


Expansion Slots
AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B850 Chipset
1 x PCIe 4.0 x1 slot


Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)*
AMD B850 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.


RAID Support
AMD RAIDXpert2 Technology*
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
* Specifications vary by CPU types.


Ethernet
1 x Realtek 2.5Gb Ethernet
TUF LANGuard


Wireless & Bluetooth
Wi-Fi 7 (MediaTek MT7925)
2x2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth v5.4***
* Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
