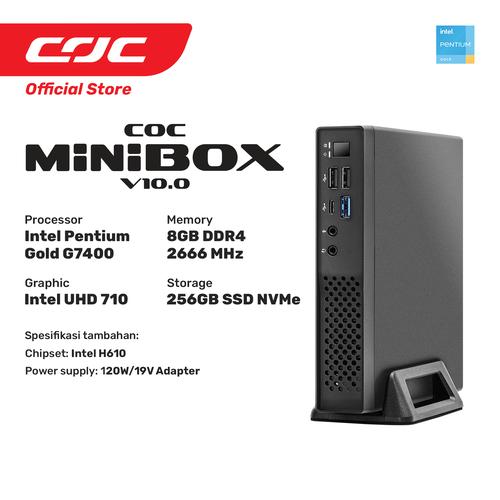

COC MINI BOX V10.0 - Paket Rakitan Mini PC Intel Gen 12

PAKET PC RAKITAN DIBUAT OLEH COC KOMPUTER, DAN DI RAKIT LANGSUNG OLEH TEKNISI YANG BERPENGALAMAN DAN PROFESSIONAL.

BISA REQUEST INGIN DI RAKIT LANGSUNG ATAUPUN RAKIT SENDIRI.

COCOK UNTUK PENGGUNAAN OFFICE, PELAJAR, ATAUPUN PC RUMAHAN YANG INGIN TAMPIL MINMALIS DAN SIMPLE.


SPESIFIKASI :
GRAPHIC : Intel UHD 710
PROCESSOR : Intel Pentium Gold G7400
CHIPSET : INTEL H610
MEMORY : SO-DIMM 2666 MHZ 8GB
STORAGE : SSD NVMe 256GB
POWER SUPPLY : 120W / 19V Adapter

Graphics Output
- 1 x DisplayPort 1.4 (DP1)
- 1 x DisplayPort 1.2 (DP2)*
- 1 x HDMI
*DP2 co-lay D-Sub

Audio
- Realtek ALC269
- 1 x Head Phone with Mic Jack
- 1 x Mic-In
- 1 x 2W Speaker

Storage
- 1 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode*
*Supports NVMe SSD as boot disks

LAN
- 1 x RJ45 Gigabit LAN
- Giga PHY Intel I219V

WLAN
- Intel AC3168/AX210 Wi-Fi Module

Front I/O
- 1 x Power Button
- 1 x Headphone/Headset Jack
- 1 x USB 3.2 Gen1 Type-A Port
- 1 x USB 3.2 Gen1 Type-C Port
- 2 x USB 2.0 Ports
- 1 x Microphone Input Jack

Rear I/O
- 1 x DC Jack (Compatible with the 19V power adapter)
- 1 x HDMI Port
- 2 x DisplayPort
- 1 x COM Port
- 4 x USB 3.2 Gen1 Type-A Ports
- 1 x USB 3.2 Gen1 Type-C Port
- 1 x RJ-45 LAN Port with LED

Connectors
- 1 x COM Port Header
- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x Mono-Out Header

Accessory
- 1 x Quick Installation Guide
- 1 x SATA Data with Power Cable
- 1 x Screws Pack
- 1 x Stand
- 1 x VESA Mount
- 2 x Antennas

Dimension
- Motherboard: 170 x 172 (Proprietary)
- Barebones: 179 x 178 x 34 mm (1.1L)

Security
- TPM 2.0 IC
- Kensington lock

OS
- Microsoft Windows 10/11 64-bit compliant
