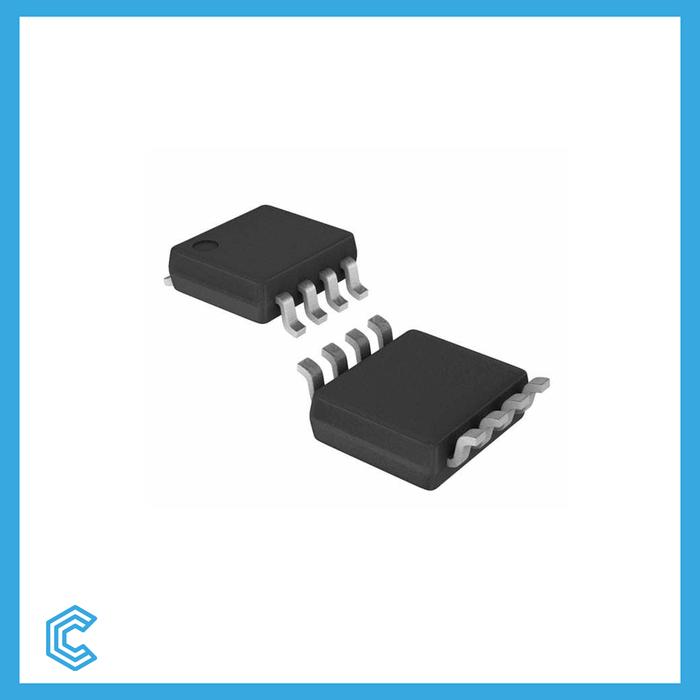

TXB0102 TXB 0102 IC Bidirectional Voltage Level Shifter converter
Terjual 40+
bintang 5 (4 rating)
Rp24.000
- Kondisi: Baru
- Berat Satuan: 10 g
- Min. Beli: 1 Buah
- Kategori: Buku Elektro
- Etalase: Komponen SMD
2-Bit Bidirectional Voltage-Level Shifter with Auto Direction Sensing and +/-15-kV ESD Protect
Features
Available in the Texas Instruments NanoFree Packages
1.2 V to 3.6 V on A Port and 1.65 V to 5.5 V On B Port (V CCA ≤ V CCB)
V CC Isolation Feature – If Either V CC Input Is at GND, All Outputs Are in the High-Impedance State
OE Input Circuit Referenced to V CCA
Low Power Consumption, 4-µA Max I CC
I off Supports Partial-Power-Down Mode Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22A Port2500-V Human-Body Model (A114-B)200-V Machine Model (A115-A)1500-V Charged-Device Model (C101)B Port15-kV Human-Body Model (A114-B)200-V Machine Model (A115-A)1500-V Charged-Device Model (C101)
Features
Available in the Texas Instruments NanoFree Packages
1.2 V to 3.6 V on A Port and 1.65 V to 5.5 V On B Port (V CCA ≤ V CCB)
V CC Isolation Feature – If Either V CC Input Is at GND, All Outputs Are in the High-Impedance State
OE Input Circuit Referenced to V CCA
Low Power Consumption, 4-µA Max I CC
I off Supports Partial-Power-Down Mode Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22A Port2500-V Human-Body Model (A114-B)200-V Machine Model (A115-A)1500-V Charged-Device Model (C101)B Port15-kV Human-Body Model (A114-B)200-V Machine Model (A115-A)1500-V Charged-Device Model (C101)
