FlyWoo GM8 MINI GPS

Terjual 30
rating 5 (18 ulasan)
Diskusi (2)
Rp230.000
  • Kondisi: Baru
  • Berat: 50 Gram
  • Kategori: Part RC
  • Etalase: FC, ESC, Stack, AIO dan GPS
Semua produk di etalase DOoFPV ready stock, bisa langsung dipesan. Proses kirim harian tiap Senin-Jumat jam 3 sore.
Join whatsapp group DOoFPV untuk info barang baru : https://bit.do/doofpv
============================================================

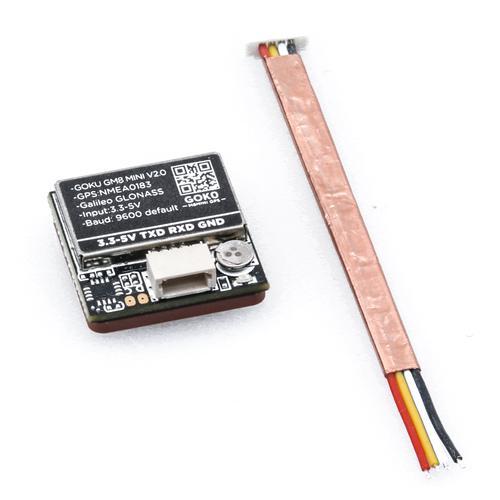

New: Versi 2

Brand: FLYWOO
Model: GM8 MINI V2.0 GPS
Dimension : 18mm*18mm*6mm
Weight : 4.6g
Connector : 1.00mm spacing between the 4pins patch seat

Specification
Electrical Characteristics
Chipset : M8030-KT
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel

Sensitivity
Tracking : -167dBm
Reacquisition : -160dBm
Cold start : -148dBm
Hot start : -156dBm

Accuracy
Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Velocity : 0.1m/sec 95% (SA off)
Timing : 1us synchronized to GPS time

Acquisition Time
Cold Start : 26s
Warm start : 25s
Hot start : 1s

Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 9600bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : NMEA-0183 or UBX, Default NMEA-0183
Single GNSS : 1Hz-18Hz
Concurrent GNSS : 1Hz-10Hz,Default 1Hz

Operational Limits
Altitude : 50,000m Max
Velocity : 515m/s Max
Acceleration : Less than 4g

Power consumption
VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V
Current : Capture 50mA/5.0V
Operating temp : -40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C

Indicator :
TX LED:RED.The data output, TX LED flashing
PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed

Wiring:
GND,TX output,RX input,VCC(3.0v-5.5v)

Package Included
1 x GM8 MINI V2.0 GPS Module
1 x 10cm Cable
1x Copper foil
