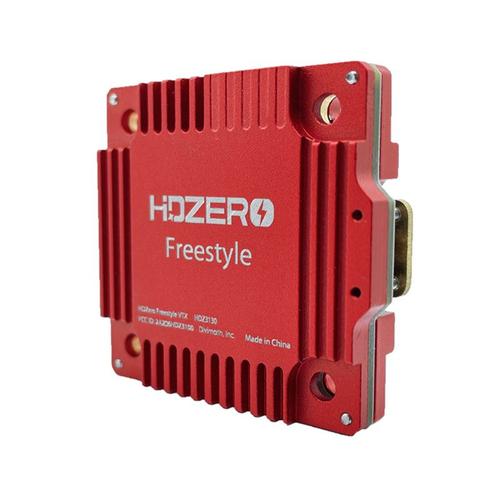

HDZero Freestyle Digital HD Video Transmitter (1W Capable)
5 orang menyukai barang ini
Rp1.740.000
- Kondisi: Baru
- Berat Satuan: 200 g
- Kategori: Aksesoris Drone
- Etalase: Radio Video Transmitter dan Receiver (TX, RX, VTX, VRX)
Semua produk di etalase DOoFPV ready stock, bisa langsung dipesan. Proses kirim harian tiap Senin-Jumat jam 3 sore.
Join whatsapp group DOoFPV untuk info barang baru : https://bit.do/doofpv
============================================================
The HDZero Freestyle VTX is a digital HD 720p 60fps 5.8GHz made for freestyle drones. The large heatsink surrounding the VTX helps maintain a stable temperature from the increased transmission power potential. Mounts on standard 30x30mm spaced holes.
The power input range is 2S –4S. Though the VTX integrates a surge protection circuit, a large capacitor (450+uF) parallel with battery leads is mandatory to smooth the power supply of the whole quad.
The VTX includes a BEC that converts 2S-6S to fixed 5.8V with a maximum 5A output current. The VTX also includes a U.FL RHCP antenna.
Specifications
Manufacturer: Divimath, Inc
Model: HDZero Freestyle VTX
Latest version that supports up to 6s voltage input!
Weight: 28g
Dimensions: 40x42x10mm
Mounting Pattern: 30x30mm M3 holes
Operating Frequency: 5.725-5.850GHz
Transmitter Power: 25mW, 200mW (Out of the box)
Antenna Interface: Secured U.FL
Video In Secured: MIPI
SmartAudio: Yes
MSP Canvas Mode: Yes
Input Power: 5.5-17V
Operating Temperature: 32˚F-104 ˚F (0˚-40˚C)
Power Consumption: 6-15W
Important Notes:
The Freestyle VTX consumes up to 15W. If it is connected with FC that has built-in BEC output, make sure the BEC has enough current. For example, the BEC has 10V, it needs a minimum of 1.5A current output.
Removing the heat sink is not recommended because it is part of the design.
Includes
1x HDZero Freestyle VTX
1x U.FL Antenna
