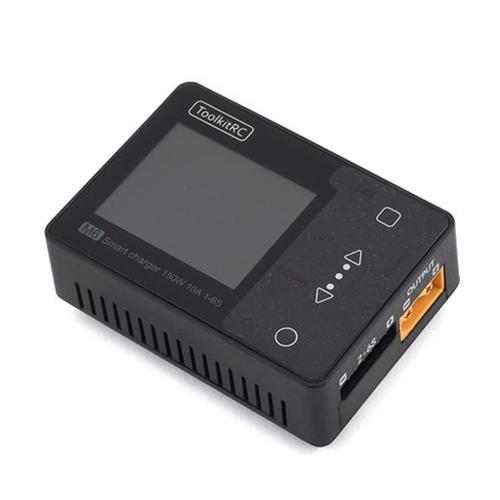

ToolkitRC M6 DC 150W 10A Lipo Charger Cell Checker Servo Tester

Semua produk di etalase DOoFPV ready stock, bisa langsung dipesan. Proses kirim harian tiap Senin-Jumat jam 3 sore.
============================================================

VERSI TERBARU V2.

The Toolkit RC M6 V2.0 is a small 150w color screen charger! At heart, the M6 is a small and compact charger that boasts a wide array of other features not found in chargers on the market. Additional functionality includes a servo tester, battery cell checker, wattmeter (power meter), PWM/PPM/S.Bus input testers (for receiver testing), as well as output generators that offer variable voltage and amperage with DC current.
Toolkit M6 Features

Battery Charger
Cell Checker
Servo Tester
PWM,PPM, S.Bus Input/output & Receiver tester
Viable AMP/Volt DC Power supply (Requires external DC input)

Charger Features

Lithium battery cut-off voltage can be set (TVC function)
Measure battery voltage, internal resistance, balance
Measure PWM,PPM, S.Bus signal values @ 1ms accuracy
Output PWM, PPM, S.Bus standard signal @ 1ms accuracy
The customizable 1-28V constant output voltage, 1-10A constant output current
Multi-language optional
USB 2.1A@5.0V Output (Mobile device charging)
U-disk firmware upgrade (Slave device)

Charger

Input voltage: 7.0-28V
Type of battery: Lipo, LiHV, LiFe, Lion @ 1-6S, NiMh @ 1-16S, Pb @ 1-10S
Charge power: 150W / Up to 10A
Discharge power: Recycle Mode: 150W/ Up to 10A Normal Mode: 8W @ Up to 2A
USB: 2.1A @ 5.0V (Mobile Charging) or USB Firmware updating
Dimensions: 68x49x26mm
Weight: 80g
LCD: 1.8inch TFT RGB, 160x128 Pixel

Measurement

PWM: 880-2200us @ 20-400Hz
PPM: 880-2200us*8CH @ 20-50Hz
SBUS: 880-2200us*16CH @ 20-100Hz
Voltage: 1.0-5.0V @ 1-6S
IR: 10-99mR @ 1-6S

Output

PWM: 500-2500us @ 20-1000Hz
PPM: 880-2200us*8CH @ 50Hz
SBUS: 880-2200us*16CH @ 74Hz
Power: 1-10A @ 1-28V Mode:CC+CV
