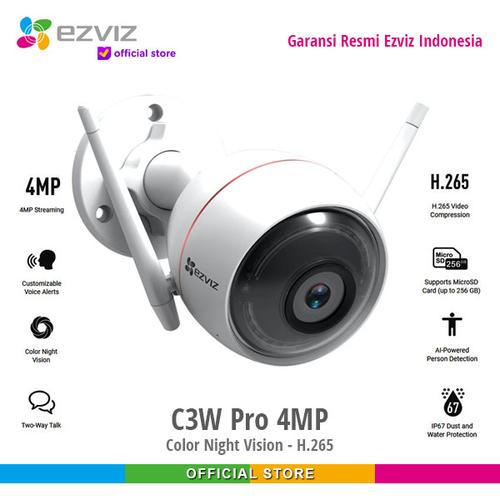

Ezviz C3W Pro 4MP Outdoor Color Night Vision Smart IP Camera

Model Parameters
Model : CS-C3W-A0-3H4WFRL

Camera
Image Sensor : 1/2.7”Progressive Scan CMOS
Minimum Illumination : 0.01 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed : Self-adaptive shutter
Lens : 2.8 mm @F1.6, view angle: 100° horizontal, 121° diagonal 4 mm @F1.6, view angle: 82° horizontal, 97° diagonal
Lens Mount : M12
DNR : 3D DNR
WDR : Digital WDR

Compression
Video Compression : H.265 / H.264
Video Bit Rate : Ultra-HD; HD; Standard. Adaptive bit rate.

General
Working Temperature : -30 °C to 60 °C (22 °F to 140 °F)
Working Humidity : 95% or less (non-condensing)
Power Supply : DC 12 V / 1 A
Power Consumption : Max. 6 W
IP Grade : IP67
Night Vision Distance (Black/White Night Vision Mode) : Max. 30 m (98.43 ft.)
Dimensions : 72 mm × 72 mm × 150 mm (2.83” × 2.83” × 5.91”)
Packaging Dimensions : 252 mm × 110 mm × 92 mm (9.92” × 4.33” × 3.62”)

Network
User Defined Alarm Tones : Supports
Wi-Fi Pairing : AP Pairing
Protocol : EZVIZ Cloud Proprietary Protocol
Interface Protocol : EZVIZ Cloud Proprietary Protocol
General Function : Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Max. Bitrate : 2M

Wi-Fi
Standard : IEEE802.11b, 802.11g, 802.11n
Frequency Range : 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth : Supports 20 MHz
Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate : 11b: 11 Mbps, 11g: 54 Mbps, 11n: 144 Mbps

Max. Resolution : 2560 × 1440
Frame Rate : Max: 30 fps; Self-adaptive during network transmission

Interface
Storage : MicroSD card slot (Max. 256 GB)
Wired Network : RJ45 × 1(10 M / 100 M Adaptive Ethernet Port)

In the box
In the box : C3W Pro (4MP) Color Night Vision Camera ; Power Adapter (1.5 m) ; Mounting Template ; Screw Kit ; Waterproof Kit ; Quick Start Guide
