Gamemax T20 White Micro ATX Gaming PC case | White

M-ATX PC CASET20•Three-sided tempered glass offers a full, unobstructed view of your hardware.
•90° rotated motherboard layout enhances airflow using the natural Stack Effect.
•Supports vertical GPU installation without a riser cable; compatible with NV50 series.
•Optimized for Back-to-Front (BTF) motherboards for clean, organized cable management.
•Space-efficient design supports 360mm liquid cooling, M-ATX motherboards, and SFX PSUs.

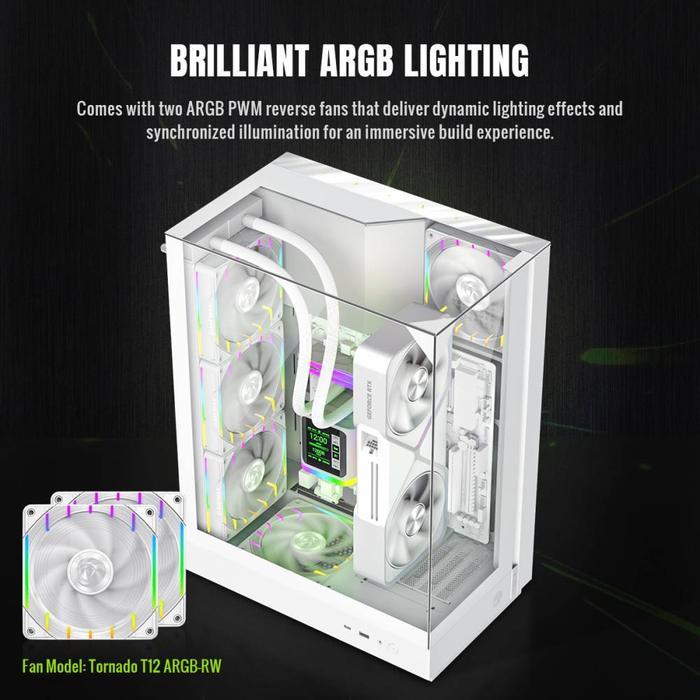

•Includes two ARGB PWM fans for dynamic, synchronized lighting effects.
•Metal nano nameplate adds a premium texture and sleek finish.




SPECIFICATION :
Form Factor: M-ATX
Chassis: SPCC:1.0mm
PSU Form Factor : SFX-L
M/B Form Factor: MATX, ITX , M-ATX Support BTF
Front Panel: Tempered Glass
Top Panel: Tempered Glass
Side Panel: Left: Tempered Glass
Right: Metal cover, GAMEMAX Proprietary Mesh
External Drive Bay(s): 5.25”(ODD) :*0 3.5”:*0
Internal Drive Bay(s): 3.5" (HDD) :*1or2 2.5" (SSD):*2or0
I/O:
Buttons: *1
USB 2.0 Port(s): *0
USB 3.0 Port(s): *1
Type C Port(s): *1(GEN2)
Audio Support: *1(Combo Audio)
Card Reader (Support): *0
P-Lock: *0
RGB Controller: *0
Controller Max Fans: *0
RGB Controller max. LED strips: *0
Remote (IR or RF): *0
Cooling Fan Support: Front: *0
Top :*0
Rear: 3x120mm(Fan optional)
Bottom: 1x120mm(Tornado T12-R)
M/B Cover: 1x120mm(Tornado T12-R)
PSU Cover：*0
Water CoolIng Support (Radiator Size):
Front: /
Top: /
Rear: 120/240/360mm
M/B Cover: *0
Dust Cover: Right side magnetic dust screen
Slots: *5
Carton & Logo : GAMEMAX
Dimensions:
Chassis: (L)340*(W)215*(H)448mm
Full Case (Inc Fascia): (L)340*(W)215*(H)462mm
Carton: (L)530*(W)285*(H)415mm
Net Weight(kg): 5.7
Gross Weight(kg): 7.0
VGA Support: Up to 382mm, Supports vertical mounting
CPU Cooler Height: Up to 160mm
SPS Length: Up to 140mm
Cable Management Depth: 27mm
