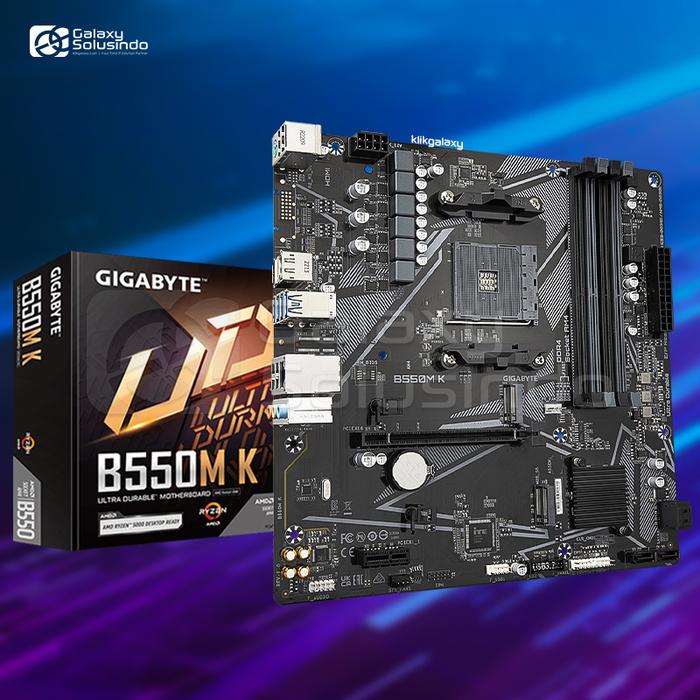

AMD B550 Ultra Durable Motherboard with Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, GbE LAN, Smart Fan 5 with FAN STOP
Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Ultra Durable PCIe 4.0 Ready x16 Slot
Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
GbE LAN with Bandwidth Management
Rear DisplayPort and HDMI for Multi-display Support
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Anti-Sulfur Resistors Design
SPECIFICATION :
CPU: Socket AM4, mendukung Ryzen 5000 / 5000G / 4000G / 3000 / 3000G
Chipset: AMD B550
Memory:4x DDR4 hingga 128GB, dual channel, support ECC & non-ECC, XMP, hingga 4733MHz (OC)
Graphics (tergantung CPU):1x DisplayPort (max 5K@60Hz), 1x HDMI (4K@60Hz)
Audio:Realtek HD Audio, hingga 7.1 channel
LAN:Realtek GbE (1 Gbps)
Expansion:1x PCIe x16 (Gen4/Gen3 tergantung CPU), 1x PCIe x1
Storage:2x M.2 (PCIe 4.0/3.0), 4x SATA 6Gb/s (RAID 0/1/10)
USB:Hingga 12 port (USB 3.2 Gen1 & USB 2.0, belakang + internal)
Internal Connectors:Power 24-pin & 8-pin, fan header, M.2, SATA, USB header, TPM, front panel
Back Panel:PS/2, DisplayPort, HDMI, 8x USB, LAN, audio jack
BIOS:AMI UEFI, 128 Mbit
Fitur Tambahan:Smart Fan 5, Q-Flash, APP Center
OS Support:Windows 10 & 11 (64-bit)
Form Factor:Micro ATX (24.4 x 24.4 cm)
