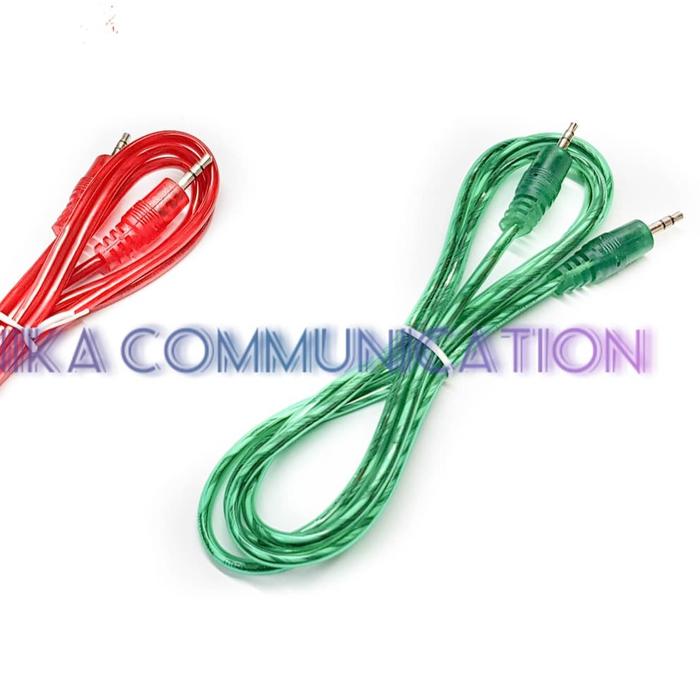

Kabel Cloning HT IC-V80 IC-U80 IC-V88 V80 Kloning Frekuensi Icom

Produk : Kabel Cloning
Kompatibel : Handie Talkie IC-V80 IC-V88 IC-U88 IC-U80

Cloning operation
Cloning allows you to quickly and easily transfer the
programmed contents from one transceiver to another.
D Transceiver-to-transceiver cloning
q Turn the transceiver’s power OFF, and then connect an
optional OPC-474 cloning cable to the [SP] jacks of the
master transceiver and the sub transceiver.
• The master transceiver is used to send data to the sub transceiver.
w While pushing [FUNC](M) and [p], turn the master transceiver
ON to enter the cloning mode.
• “CLONE” appears
e Turn the sub transceiver ON.
r Push [PTT] on the master transceiver.
• “CL Out” appears on the master transceiver’s display, and the
signal indicator shows the data is being transferred to the sub
transceiver.
• “CL In” appears on the sub transceiver’s display, and the signal
indicator shows the data is being received from the master
transceiver.
t When cloning is finished, turn both the transceivers OFF.
Then turn them ON again to exit the cloning mode.
NOTE: DO NOT push [PTT] on the sub transceiver during
cloning. This will cause a cloning error
