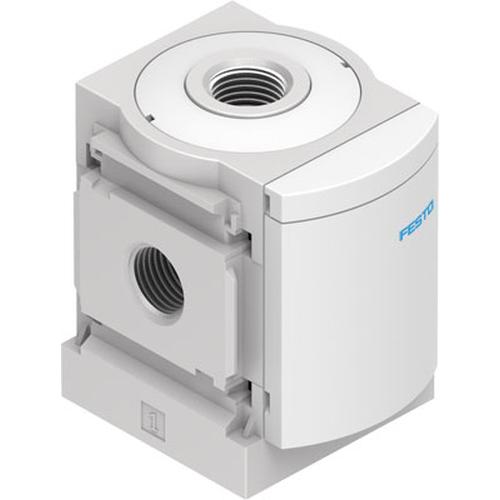

BRANCHING MODULE 20BAR MS6-FRM-1/2

Assembly position Any
Design structure Branching module
Operating pressure 0 ... 20 bar
Standard nominal flow rate in main flow direction 1->2 14,700 l/min
Standard nominal flow rate outlet at top 4,400 l/min
Standard nominal flow rate outlet at bottom 4,600 l/min
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Inert gases
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC 2 - Moderate corrosion stress
Storage temperature -10 ... 60 °C
Food-safe See Supplementary material information
Medium temperature -10 ... 60 °C
Ambient temperature -10 ... 60 °C
Product weight 458 g
Pneumatic connection, port 1 G1/2
Pneumatic connection, port 2 G1/2
Pneumatic connection, port 3 G1/2
Pneumatic connection, port 4 G1/2
Materials note Conforms to RoHS
Material housing Aluminium die cast
