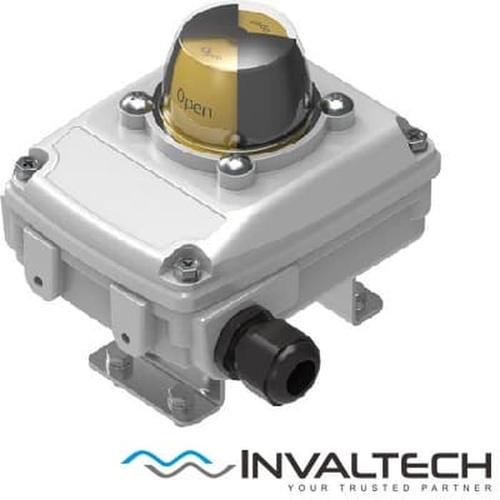

FESTO sensor box SRBC-CA3-YR90-N-20N-ZC-C2P20-EX6 (3482807)

to EU directive explosion protection (ATEX) in accordance with EU RoHS directive KC mark KC-EMV ATEX category Gas II 1G Explosion ignition protection type Gas Ex ia IIC T6/T5 Ga ATEX category Dust II 1D Explosion ignition protection type Dust Ex ia IIIC Txx°C Da Explosion protection certification outside the EU EPL Da (IEC-EX) EPL Ga (IEC-EX) Explosion-proof ambient temperature See ATEX certificate See IECEx certificate Max. input voltage 16 V effective inductivity 100 µH effective capacity 100 nF Max. input parameters for intrinsically safe circuit See IECEx certificate See ATEX certificate Certificate issuing department FTZU 17 ATEX 0105X IECEx FTZU 17.0017X Materials note Contains PWIS substances Conforms to RoHS Safety Integrity Level (SIL) SIL 2 Ambient temperature -20 ... 80 °C Switch output NAMUR Switching element function Normally closed contact Max. output current DC 3 mA Operating voltage range DC 8.2 V Electrical connection 10-pin Screwed terminal Connectable nominal conductor cross section 0.25 ... 2.5 mm2 Cable gland connection M20x1,5 Permissible cable diameter 6 ... 12 mm Mounting type On flange to ISO 5211 With mounting bracket Assembly position Any Product weight 800 g Material housing Aluminium die cast Material seals NBR Material shaft High alloy steel, non-corrosive Material screws High alloy steel, non-corrosive Material blanking plug PA Material mounting bracket High alloy steel, non-corrosive Material indicator PC Material cable connection PA Material snap ring High alloy steel, non-corrosive Material disc High alloy steel, non-corrosive Position indicator Yellow/red Setting range, angle recording 0 ... 90 deg Storage temperature -20 ... 80 °C Protection class IP67 NEMA 4/4X Shock resistance Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27 Vibration resistance Transport application test at severity level 2 in accordance with FN 942017-4 and EN 60068-2-6
