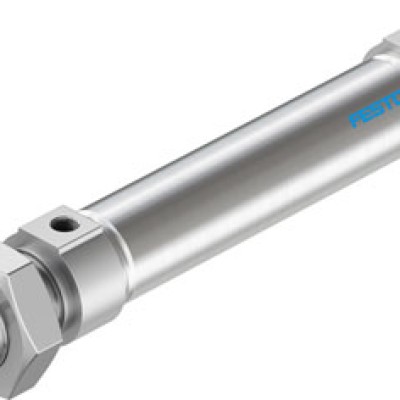

STANDARD CYLINDER DSNU-16-40-P-A

40 orang melihat barang ini
Rp699.600
  • Kondisi: Baru
  • Berat: 1.000 Gram
  • Waktu Preorder: 10 Hari
  • Kategori: Regulator Pneumatic
  • Etalase: Festo New
Stroke 40 mm
Piston diameter 16 mm
Piston rod thread M6
Cushioning P: Flexible cushioning rings/plates at both ends
Assembly position Any
Conforms to standard CETOP RP 52 P
ISO 6432
Piston-rod end Male thread
Design structure Piston
Piston rod
Cylinder barrel
Position detection For proximity sensor
Variants Single-ended piston rod
Operating pressure 1 ... 10 bar
Mode of operation double-acting
Maritime classification see certificate
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC 2 - Moderate corrosion stress
Ambient temperature -20 ... 80 °C
Impact energy in end positions 0.15 J
Theoretical force at 6 bar, return stroke 103.7 N
Theoretical force at 6 bar, advance stroke 120.6 N
Moving mass with 0 mm stroke 23 g
Additional weight per 10 mm stroke 4.6 g
Basic weight for 0 mm stroke 89.9 g
Additional mass factor per 10 mm of stroke 2 g
Mounting type with accessories
Pneumatic connection M5
Materials note Conforms to RoHS
Material cover Wrought Aluminium alloy
neutral anodisation
Material seals NBR
TPE-U(PU)
Material piston rod High alloy steel, non-corrosive
Material cylinder barrel High alloy steel, non-corrosive
