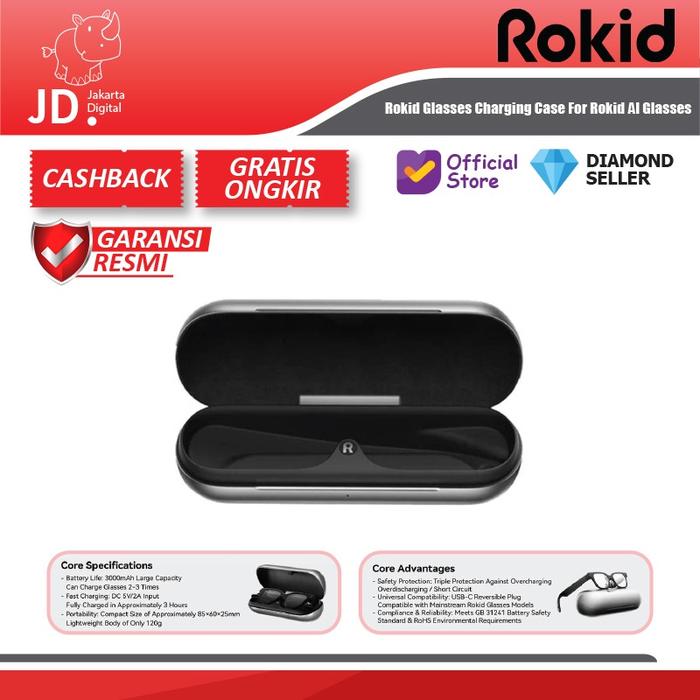

Rokid Glasses Charging Case For Rokid AI Glasses

Rokid Glasses Charging Case For Rokid AI Glasses


Specifications
General Specifications
• Product Name: Charging Case for Rokid Glasses (Optional Accessory)
• Operating Temperature: 0°C – 35°C
• Surface Temperature: ≤ 40°C (at 25°C ambient temperature during operation)
• Battery Cycle Life:
• Charged at 0.2C to 4.2V, discharged at 0.2C to 3.0V
• ≥ 500 charge/discharge cycles


Battery & Charging
• Battery Capacity: 3150 mAh
• Charging Interface: USB Type-C
• Input Power: 10W (Type-C charging for the case)
• Output to Glasses:
• Magnetic pogo-pin connection
• 5V / 1A charging output


Functional Features
• Battery Level Indicator:
• LED indicator displays charging case battery status
• Lid Detection:
• Built-in sensor detects opening and closing of the lid
• Magnetic Charging:
• Supports magnetic alignment and charging for glasses


LED Indicator Logic
• Battery Level Indication:
• 0–25% Breathing orange light
• 25–100% White light (status indication)
• Charging Animation:
• LED transitions smoothly from off on off
• Non-linear brightness change (breathing effect)
• Lid Interaction:
• LED responds to lid open/close actions


Charging Interaction Logic
• When output current is below a certain threshold (e.g.
the system determines that the glasses are fully charged or disconnected.


Certifications (Overview)



Environmental & Compliance
• REACH
• RoHS (EU & China)
• WEEE
• TSCA (North America)
• CP65
Battery & Safety
• UN38.3
• IEC 62133
• CB Certification
• MSDS
Regional Certifications
• CE (Europe)
• UKCA (UK)
• FCC / IC (North America)
• SRRC / 3C (China)
• TELEC / PSE / VCCI (Japan)
• NCC (Taiwan)
• OFCA (Hong Kong)
• IMDA (Singapore)
• SIRIM (Malaysia)
• NBTC (Thailand)
