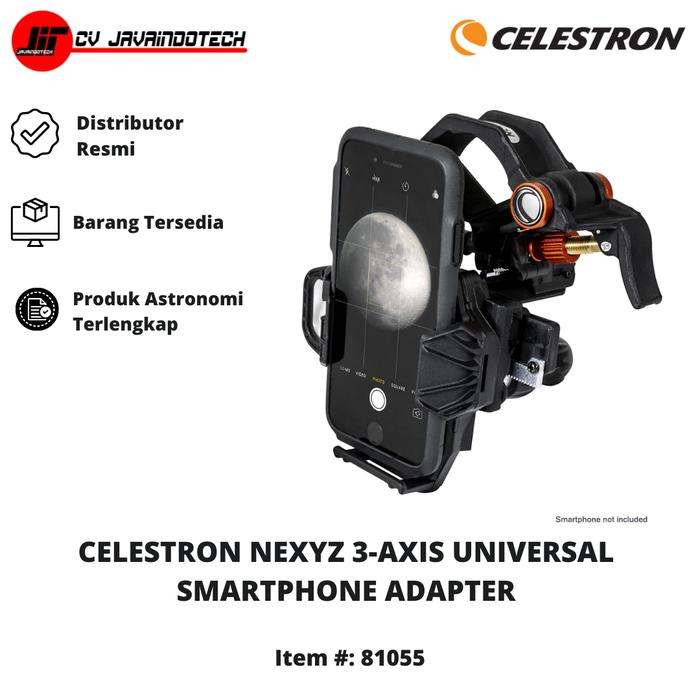

Celestron NEXYZ 3-AXIS UNIVERSAL SMARTPHONE ADAPTER

NexYZ connects your smartphone to your telescope, spotting scope, binocular, monocular, and microscope so you can capture images and video through the eyepiece
Works with a wide range of mobile phone models, including all the latest devices from Samsung, Google, and Apple
Unlike other adapters, NexYZ features three directional knobs (X, Y, and Z axis) that perfectly align your phone’s camera with the eyepiece in seconds so you are ready to snap the perfect image
NexYZ stands up to rigorous field use thanks to its robust, durable construction with a metal frame and polymer body

Smartphone Adapter Instructions

Connect The Adapter
For Telescopes, Binoculars, and Spotting Scopes

Squeeze the lever to open the clamp. Position the clamp around the eyepiece and release. Tighten the safety lock.
For Microscopes

Choose one of the two provided adapter rings that best fits your microscope’s eyepiece and secure it in place. (You may need to remove the eyepiece from the microscope to install the ring.) Then, follow the instructions above.
Attach Your Phone
NeXYZ works with regular phone cases, but you will need to remove “folio-style” cases. Extend the slider. Place your phone on the platform, making sure the bottom is touching the rubber base. Release the slider. Your phone is now secure and ready for imaging.
Align and Shoot
Open your camera app. Position your phone over the eyepiece using the X and Y axis knobs. Then, use the Z axis knob to move closer or further away from the eyepiece until you have achieved your desired framing. Finally, adjust the focus using the focuser on your optics and snap the image
