NEW VERSION: BLACK CASE

Happymodel ES24TX 2.4GHz ExpressLRS ELRS Long Range Low Latency High Re-flashed Micro TX Module for RC Drone

OVERVIEW:
This Micro TX is designed by Happymodel and based on the open source- ExpressLRS which is a very popular low latency and high re-flashed rate RF module for RC Airplane and FPV Racing. Its main hardware architecture is ESP32, ESP8285 and SX1280 RF chip. The ES24TX module is a complete solution which is already pre-load the Expresslrs firmware and its plug and play.

Specifications:
Brand Name: Happymodel
Item Name: ES24TX Micro TX Module
Regulatory Domain: ISM2400
MCU:ESP32(main),ESP8285(aux,as espbackpack)
RF chip: SX1280IMLTRT
JR standard 5pin socket
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 25Hz
RF Output Power: 10dBm~24dBm
Power supply voltage: 5v~10v
Weight: 9.5gram(without antenna）
Dimension: 55.5mm*39.5mm*8mm
Antenna gain: 1.87dBi
The JR Bay Case Color has change Black

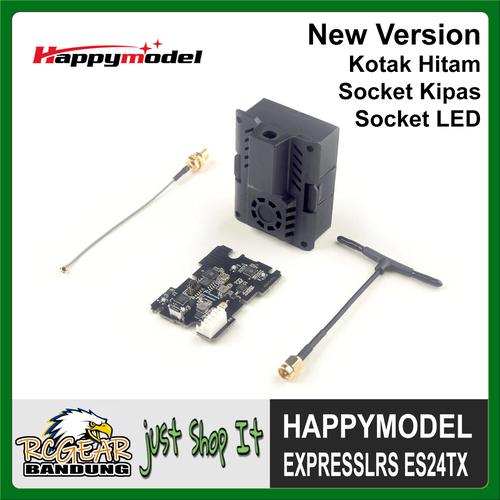

Package Include:
1 x ES24TX Module
1 x 24TX80 Antenna
1 x 3D Printed Mounting Box
1 x Antenna Adapter Cable
