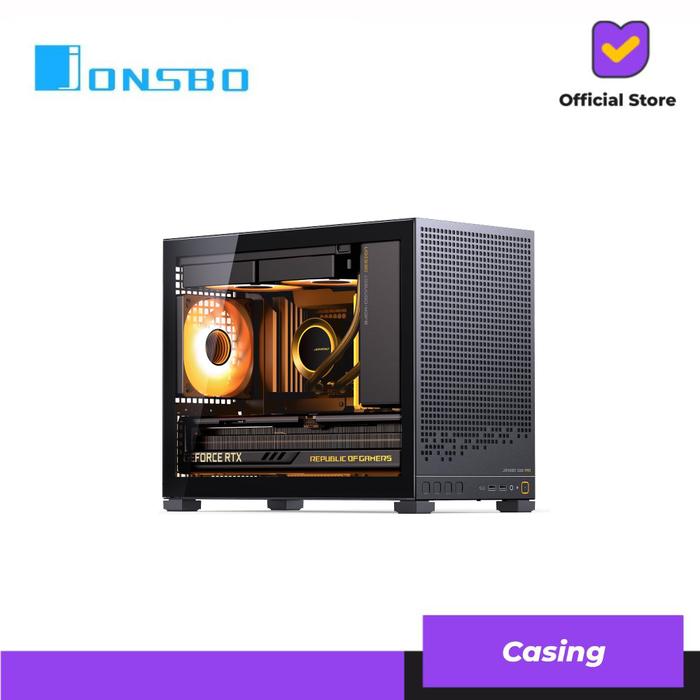

JONSBO D32 PRO | Micro-ATX PC Case - Black

PRODUK ORIGINAL GARANSI RESMI PT. ACEGEAR


JONSBO D32 PRO Black (M-ATX Sff PC Case)
BLACK (JNBO-D32PRO-B)
WHITE (JNBO-D32PRO-W)


Seri D32 PRO merupakan seri case M-ATX dari JONSBO dengan model Tower, tersedia dengan warna black dan white.


SPECIFICATION:


Model: D32 PRO
Dimensions: (w/o feet and other protrusions): 384mm x 207mm x 302mm (depth/width/height)
Dimensions: (with feet and other protrusions): 396mm x 207mm x 314mm (depth/width/height)
Case Material: SPCC Steel(0.7mm+0.8mm)
Motherboard Support: Mini-ITX / Micro-ATX (Regular) / Micro-ATX (Back-Connect, the chassis needs to be
switched to B mode)


Drive Bay:
2.5": up to 4, depends on other hardware configurations
3.5": up to 2 (shared with the 2 x 2.5" mounts), depends on other hardware configurations


Front IO Port:
USB3.2 Gen1 Type-A*2/USB3.2 Gen 2 Type-C*1/AUDIO*1 & MIC*1


FAN:
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm
Bottom: 3 x 120mm / 2 x 140mm, depends on other hardware configurations


Radiator support:
Top, up to 240mm


ATX PS2 PSU Clearance：
When the GPU is installed in the first PCI-E slot of the chassis, the maximum   length of the power supply is 150mm, and the recommended length is ≤140mm

When the GPU is installed in the second PCI-E slot of the chassis, the maximum   length of the power supply is 170mm, and the recommended length is ≤160mm

This mounting position depends on the motherboard, please refer to the motherboard specifications

When the GPU length is ≤288mm and the power compartment partition is removed, the power supply   length is limited to 200mm (not compatible with 16A plugs)


SFX PSU Support：
SFX / SFX-L


CPU Air Cooler Clearance:
In A mode, the height limit is 170mm (Intel CPU) or 169mm (AMD CPU)
In B mode, the height limit is 164mm (Intel CPU) or 163mm (AMD CPU)


GPU Clearance:
Up to 365mm


Weight:
N.W. 4.6kg / G.W. 5.8kg
