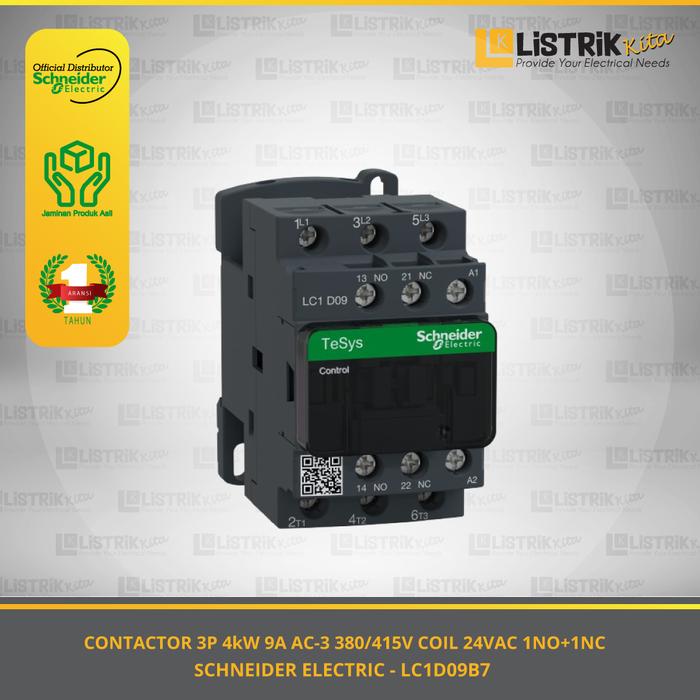

CONTACTOR SCHNEIDER ELECTRIC TESYS D 3P 4kW 9A AC-3 380/415V COIL 24VAC 1NO+1NC - LC1D09B7

CONTACTOR 3P 4kW 9A AC-3 380/415V COIL 24VAC 1NO+1NC TESYS D SCHNEIDER ELECTRIC - LC1D09B7 #34;

Kode Produk LC1D09B7
Nama Produk CONTACTOR 3P 4kW 9A AC-3 380/415V COIL 24VAC 1NO+1NC
Keterangan TESYS D SCHNEIDER ELECTRIC - LC1D09B7
Arus Pengenal9AKontak Bantu 1NO+1NC
Tegangan Coil 24VAC
Motor Power kW 4kW
Brand Schneider Electric
Tipe TeSys D

[Deskripsi]
Kontaktor untuk mengontrol motor hingga 150 A (75 kW / 400 V).
Kontaktor TeSys D dan kontaktor pembalik tersedia dari 9 A hingga 150 A (motor induktif), dan dari 20 A hingga 200 A (beban resistif) dalam versi 3 kutub dan 4 kutub.

[Spesifikasi] 1.
product or component type : Contactor 2.
device short name : LC1D 3. contactor application : -Resistive load -Motor control 4.
utilisation category : -AC-4 -AC-1 -AC-3 5.
poles description : 3P 6.
power pole contact composition : 3 NO 7.
[Ue] rated operational voltage : -Power circuit: lt;= 690 V AC 25...400 Hz -Power circuit: lt;= 300 V DC 8.
[Ie] rated operational current : -9 A (at lt;60 °C) at lt;= 440 V AC AC-3 for power circuit -25 A (at lt;60 °C) at lt;= 440 V AC AC-1 for power circuit 9.
control circuit type : AC at 50/60 Hz 10.
[Uc] control circuit voltage : 24 V AC 50/60 Hz 11. auxiliary contact composition : 1 NO + 1 NC 12.
[Ith] conventional free air thermal current : -25 A (at 60 °C) for power circuit -10 A (at 60 °C) for signalling circuit 13.
Irms rated making capacity : -250 A at 440 V for power circuit conforming to IEC 60947 -140 A AC for signalling circuit conforming to IEC 60947-5-1 -250 A DC for signalling circuit conforming to IEC 60947-5-1 14.
rated breaking capacity : 250 A at 440 V for power circuit conforming to IEC 60947 15.
height : 77 mm 16.
width : 45 mm 17.
depth : 86 mm 18.
net weight : 0.32 kg #34;
