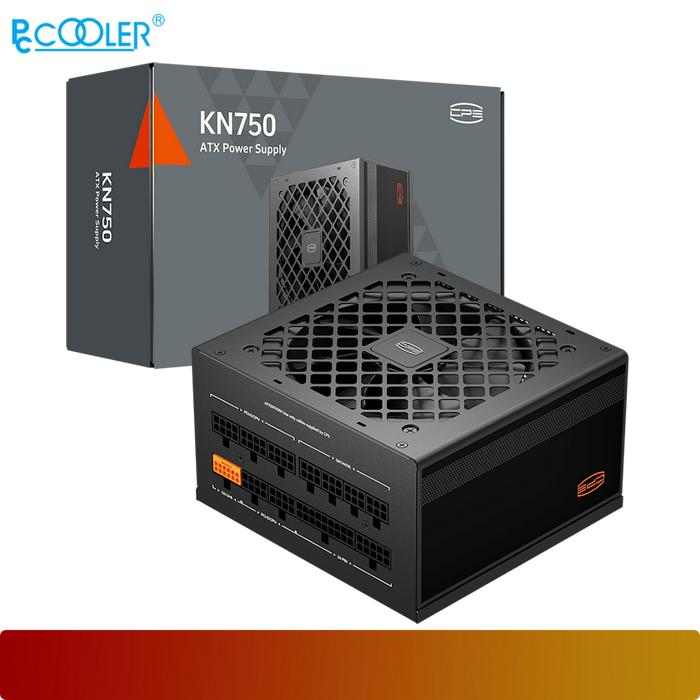

PCCOOLER KN750 | PSU 750W 80+ Gold ATX 3.1 PCIe 5.1 Fully Modular

Specifications :

Model No.
- KN750

Type
- ATX3.1

Output Power
- 750W

Certification
- 80PLUS GOLD

Eficiency
- ≥90% Under Typical Load(50% Loading)


Topology
- Active PFC + Half Bridge SRC LLC + DC to Dc


AC Input
- 100-240Vac Full Range


Protection
- OVP/UVP/SCP/OPP/OCP/OTP/SPD


Hold Up Time
- ≥16mS(80% Load)


Safety
- CB/CE/CCC/EAC/UKCA/FCC/ CAN ICES (B)/ NMB(B)


Environmental Compliance
- Rohs/ERP2014


Fan Dimension
- 120 x 120 x 25mm


Fan Bearing Type
- Hydraulic Bearing

Fan Operating Mode
- Thermal Control

Capacitors
- Japanese Bulk Capacitor

Operating Temperature
- 0~40℃


MTBF
- 100,000 Hours(Fan excepted)


Modularity
- Full-modular

PCI-E 5.1 Output Power
- 450W


Cable Type
- Flat Embossed Cable

Output Wire
- Motherboard (20+4 Pin) x 1: 1 x 600mm
- CPU (4+4 Pin)x1: 2 x 650mm
- PCI-E (6+2 Pin) x 1: 2 x 500mm
- SATA x 2+4 Pin Peripheral x1: 2 x450+150+150mm
- SATA x 3: 1 x 450+150+150mm
- 12V-2x6 x 1: 1 x 600mm

Warranty
- 5 Years
