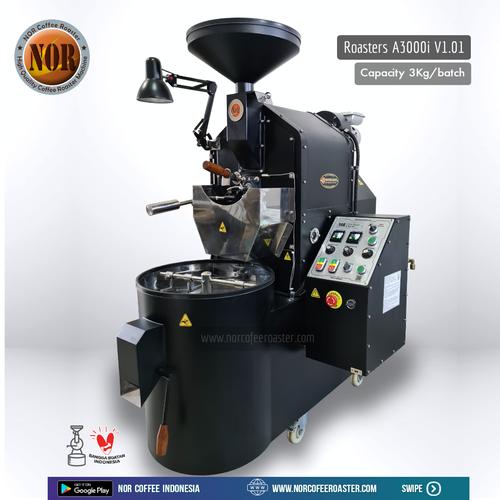

Foto Produk Mesin Roasting Kopi A3000i Capacity 3kg/batch dari NOR Coffee Indonesia
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Atur jumlah dan catatan

Stok 1

Tambah Catatan

Subtotal

Rp65.000.000

Mesin Roasting Kopi A3000i Capacity 3kg/batch

22 orang menyukai barang ini
Rp65.000.000
  • Kondisi: Baru
  • Berat: 5 Kilogram
  • Kategori: Coffee & Tea Maker
  • Etalase: Mesin Roaster Kopi
SPECIFICATION A3000i: ASeries

DRUM CAPACITY: 3kg/batch, Min 300gr, Max 3,5kg
DRUM SPEED: Adjustable, Automatic switch ON when Heating and switch OFF when Cooling
HEAT SOURCE: Gas (LPG / Natural)
HEATING SYSTEM: Indirect
BURNER TYPE: Semi Infrared Gas Burner
BURNER SYSTEM: Gas Burner with Solenoid Valve & Automatic Igniter
BURNER CONTROL: Digital Electric Burner Power
AIRFLOW CONTROL: Digital Electric Damper Airflow
PRE HEATING: Approximately 12 Minutes
ROASTING TIME: Average 8-12 Minutes
COOLING TIME: Approximately 3-5 Minutes
ENVIRONMENTAL TEMP. (ET): Digital, Suport Data logger, Default SV: 35C
BEAN TEMPERATURE (BT): Digital, Suport Data logger, Default SV: 220C
COOLING BEAN: Yes
AGITATOR: Yes
AIRFLOW & CYCLONE: Centrifugal Blower, Automatic switch ON when Heating and switch OFF when Cooling
ROAST DRUM: Solid Stainless Steel 304 t:7mm Food Grade
COOLING SYSTEM: Centrifugal Blower
CONSTRUCTION & MATERIAL: Steel & Stainless Steel
CHAFT COLLECTOR: Available in Drum and Cyclone
TRANSMISION SYSTEM: Gear Roller Chain Drive
GAS PRESURE GAUGE: Single Analog Gas Presure
ELECTRICAL REQUIREMENT : 220VAC / 50Hz 720W
SIGHT GLASS: Yes
TRIER: Yes
LAMP: Yes
SAFE UNIT SHUT DOWN: Yes
GAS LEAK ALARM: Yes
FLAME FAILURE ALARM: Yes
COMPACT DESIGN: Featuristic Design
DATA LOGGING: NOR Modbus Artisan Scope
ARTISAN FEATURES: LOGGING + CONTROL, Slider Power Burner, Slider Damper Airflow, Alarm, PID Control
CONTROLLER SYSTEM: Atmel AVR (8-bit), Program can be Updated
Product Package A3000i (Paket Kelengkapan Mesin):

1 Unit Mesin A3000i
1 Set Regulator with Analog Gas High Presure
1 Set USB 2.0 Cable Communication Data Logger Artisan
1 Set AC Power Cable
Aluminium Flexible Ducting 5-10m
