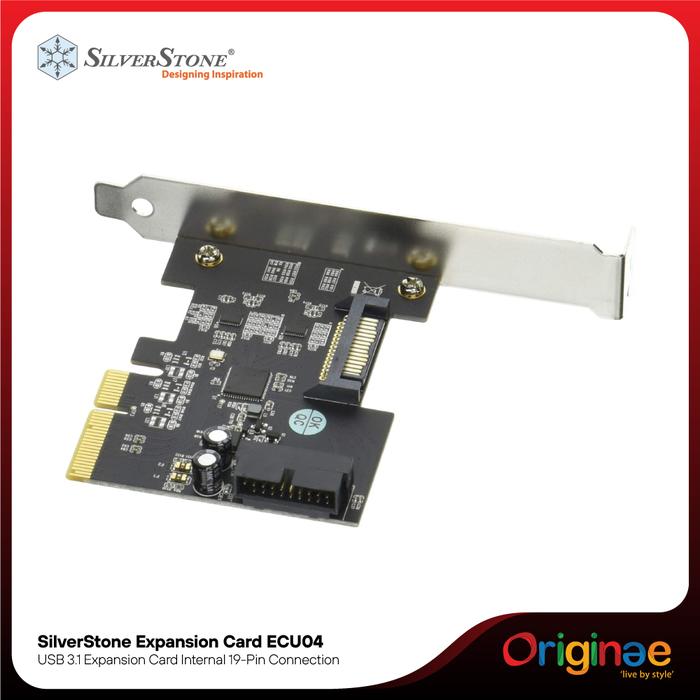

SILVERSTONE EXPANSION CARDS ECU04

CLEARANCE

Product Specifications

Model No. SST-ECU04
Host interface : Low profile - PCI-E 2.0 x2 (10Gbps)
USB Ports : Internal 19pin connector for dual USB 3.1 ports
USB 3.1 controller
ASMedia ASM1142
Transmitting Speed : USB 3.1 (10 Gbps), USB 3.0 (5 Gbps), USB 2.0 (480 Mbps), USB 1.1 (12 Mbps)
Power requirement : 5V via SATA 15-pin power connector
Power Management : Support USB 3.1 and USB 2.0 link power management
Current protection :
Support over current detection and protection
Operating system support : Windows 7 (32bit/64bit)*, 8/8.1/10 (32bit/64bit)**, Ubuntu/Linux/Mac OS***
Extra : UASP function
* If your OS version is Windows 7 or earlier, please install driver (available from SilverStone website) prior to using the ECU04.
** Windows 8 or 8.1, 10 supports ECU04 automatically so you do not need to install additional driver for it.
*** User should check for XHCI function in Ubuntu/Linux or Mac OS, if computer system supports XHCI function then it can support ECU04 automatically without additional driver installation.
**** If your operating system is incompatible with the expansion cards developed by SilverStone, such that your device can not be detected or recognized, please update your motherboard’s driver or BIOS to the latest version. You may also try executing compatible mode in your operating system and select previous versions of operation system to install driver required by the expansion cards.
