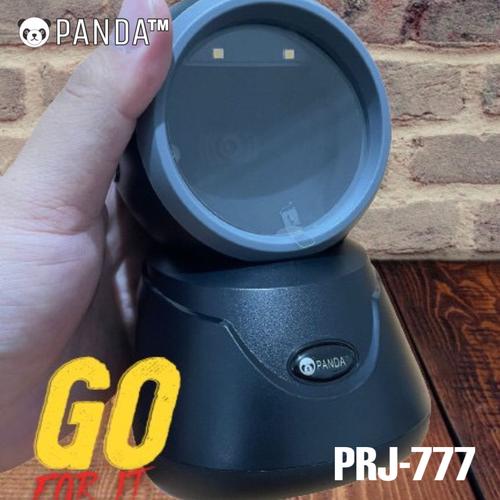

Panda Barcode Scanner 2D PRJ-777

Barcode Scanner Panda 2D PRJ-777

Garansi 12 bulan tidak termasuk Kabel dan Accesories

feature
Super efficient scanning.
Can read screen bar codes such as mobile phones and computers.
Using latest decoder technology, can read all 1D and 2D barcodes.
USB and RS232 interface, can automatically match device,plug and play.
Unique shape design,rotatable base to meet many scanning applications.
Blue and red LED indicator,double buzzer to adapt to various nosy environments.
The cable is made of high temperature resistant material and high quality inner copperwire to meet various environments and the using line is longer.

Operational Parameter :
Image (Pixel) :: 640 pixels (H) x 480 Pixel (V)
Light Source : Aiming : 617nm LED
Depth of Filed : 0-200mm @UPC/EAN 13 mil PCS = 90% ; 0-150mm @20mil PCS=100%
Scan Angle : left and right 60 degree / front and Rear 60 degree / Move 360 degree
Field Of View : 48 Degree horizontal , 30 degree Vertical
Read Resolution : > 5 mil
Print Contrast : >25%
Visual Indicator : Blue and Red Double Colored LED light, Double Buzzer
Interface : TTL - 232 , USB ( HID KBW, V-Com )

Physical Characteristics
Dimension : 101mm (L) x 102mm (W) x 159mm(H)
Weight : 332g
Cable : Standard 1.8m straight

Power Parameter
Input Voltage : 5VDC 10%
Working Current : 250Ma

Barcode Types :
1D barcode > UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code39 ( with full ACSII ), Codabar (NW7) Code 128 & EAN-128, code93, interleaved 2 of 5 (ITF), Addendum 2 of 5 , IATA code, MSI / Plessy, China postal code, Code 32 ( Italian Pharmacode), RSS14, RSS Limited, RSS Expanded.
2D Barcode > QR code, Data Matrix, PDF417, Aztec, Maxicode, GSI DataBar stack
