Sale Waveshare 7.5 Inch Eink Screen Module 800480 ePaper Display SPI

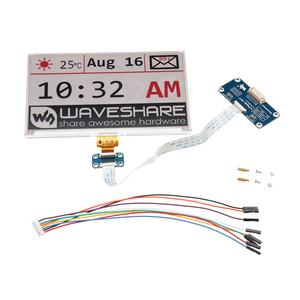

Waveshare 7.5 Inch Eink Screen Module 800480 ePaper Display SPI Interface 7.5inch ePaper HAT B For Raspberry Pi

Semua Produk Di Toko Kami PO (Personal Pre-Order) 7-10 Hari. Harap Chat Terlebih Dahulu Sebelum Order Atau Anda Setuju Dengan Waktu Pre-Order Yang Kami Tetapkan Secara Default 15-Hari.

gtgtgtManual Click here to openltltlt Features nbsp No backlight keeps displaying last content for a long time even when power downUltra low power consumption basically power is only required for refreshingStandard Raspberry Pi 40PIN GPIO extension header supports Raspberry Pi series boards Jetson NanoSPI interface for connecting with controller boards like Raspberry PiJetson NanoArduinoSTM32 etc.Onboard voltage translator compatible with 3.3V 5V MCUsComes with development resources and manual examples for Raspberry PiJetson NanoArduinoSTM32 nbsp Parameter nbsp OPERATING VOLTAGE3.3V5VDISPLAY COLORred black whiteINTERFACE3wire SPI 4wire SPIGREY SCALE2OUTLINE DIMENSIONS170.2 111.2mmFULL REFRESH TIME16sDISPLAY SIZE163.2 97.92mmREFRESH POWER48mW typ.DOT PITCH0.205 0.204mmSTANDBY CURRENTlt0.01uA almost noneRESOLUTION800 480 pixelsVIEWING ANGLEgt170 nbsp Package includes 1 x 7.5inch ePaper 1 x ePaper Driver HAT 1 x RPi copper column package 2PCS set7.5 EPAPER HAT BLow Power Consumption Wide Viewing Angle PaperLike Displaying Without ElectricityAdvantages Of EINKEpaper display utilizes microcapsule electrophoretic technology for displaying the principle is charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied making the microcapsule become visible by reflecting ambient light just as traditional printed paper.Epaper display will clearly display imagestexts under lamplight or natural light requires no backlight and features
