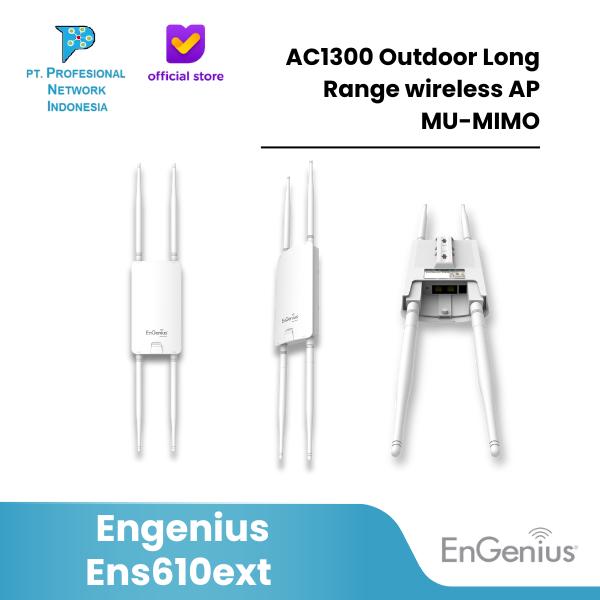

Engenius Ens610ext - AC1300 Outdoor Long Range wireless AP MU-MIMO

Engenius Ens610ext - AC1300 Outdoor Long Range wireless AP

Processor

Qualcomm 717 MHz Quad-Core CPU
4x ARM Cortex A7
Memory Capacity

Memory: 256 MB
Flash Memory 32 MB
Antenna

4 x 5dBi External Detachable SMA Antennas
Physical Interface

2 x 10/100/1000 Gigabit Ethernet Ports
– LAN1
– LAN2
1 x Reset Button
LED Indicators

1 x Power
WLAN (Wireless Connection)
2.4 GHz
5 GHz
2 x LAN
Power Source

PoE Injector (EPA2410GP)
INPUT: 100-240VAC, 0.7A, 50-60Hz
OUTPUT: 24V, 1A
Power-over-Ethernet: 24V Proprietary PoE
IEEE 802.11e Compliant Source
Active Ethernet (PoE)​
Mounting

Wall Mount
Pole Mount
Surge Protection

Line to Line: 1 KV
Line to Ground: 2KV
ESD Protection

Contact: 4KV
Air: 8 KV
Ingress Protection Marking

IP55-Rated Waterproof/Dustproof Enclosure

Wireless & Radio Specifications
Operating Frequency

Dual-Radio Concurrent 2.4GHz & 5GHz
Operation Modes

Access Point Mode (AP mode)
Client Bridge Mode (CB Mode)
WDS: WDS AP, WDS Bridge, WDS Station
Frequency Radio

2.4GHz: 2400 MHz ~ 2835 MHz
5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz
Transmit Power

Up to 15dBm on 2.4 GHz
Up to 15dBm on 5 GHz
Max transmit power is limited by regulatory power

Radio Chains/Spatial Streams

11ac Wave2 2 x 2:2
Tx Beamforming (TxBF)
SU-MIMO

5GHz – Two (2) Spatial Streams SU-MIMO up to 1267 Mbps to a single client
MU-MIMO

5GHz – Two (2) Spatial Streams MU-MIMO for up to 1267Mbps to two (2) MU-MIMO capable wireless devices simultaneously

Package Contents :

– ENS610EXT 11ac Wave 2 Outdoor AP
– PoE Injector (EPA2410GP)
– Pole Mount Ring
– Mounting Screw Set
– RJ-45 Ethernet Cable
– Quick Installation Guide
– 2 – 2.4GHz 5dBi SMA Antennas
– 2 – 5GHz 5dBi SMA Antennas
