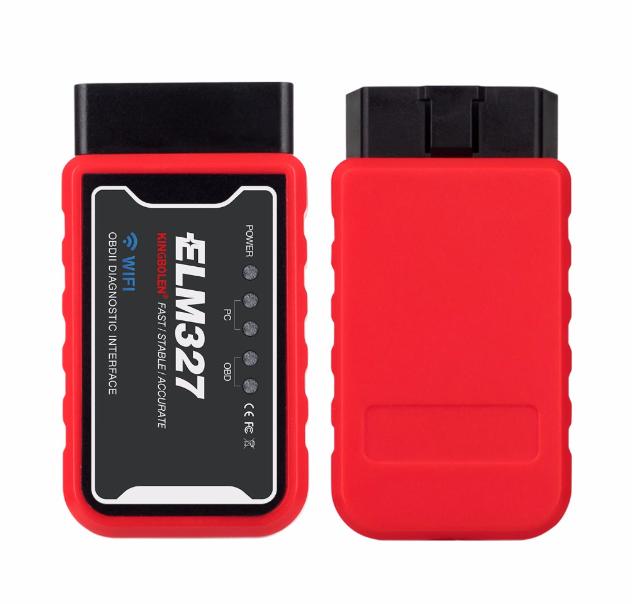

Foto Produk NEWEST ELM327 1.5 ANDROID IOS WIFI SCANNER OBD2 dari RACHMAN-SHOP
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Atur jumlah dan catatan

Stok 2

Tambah Catatan

Subtotal

Rp179.000

NEWEST ELM327 1.5 ANDROID IOS WIFI SCANNER OBD2

Terjual 57
rating 4.8 (24 ulasan)
Diskusi (28)
Rp179.000
Cashback 4%
  • Kondisi: Baru
  • Berat: 300 Gram
  • Kategori: ECU & Kelistrikan Mobil
  • Etalase: Alat Scan
Wifi ELM327 interface is able to detect and interpret obd2 / eobd protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, for iOS). There are plenty of software packages available, which are fully compatible with this tool. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained. This tool is only 2.7 x 1.25x 0.9 inches, and it comes with a 6 ft OBDII cable for easy installation. It also includes a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles which are obd2 or eobd compliant. Connecting to your iPhone / iPod touch is made by WIFI connection in adHoc mode.
Features:
*Firmware Version V1.5 (Supports more protocols SAE J1850 than V2.1).
*With chip:PIC18F25K80 ,supports all elm327 fucntions,in program ELM327 identifier,it shows full functions.
It understand commands such as ATPPS and other.
The frequency of the crystal oscillator is 4mHz.
Main Functions:
With proper software installed in the host device, you may have following parameters read out from your vehicle:
Vehicle Speed
RPM
Fuel Consumption
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim
Support Protocols:
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN
