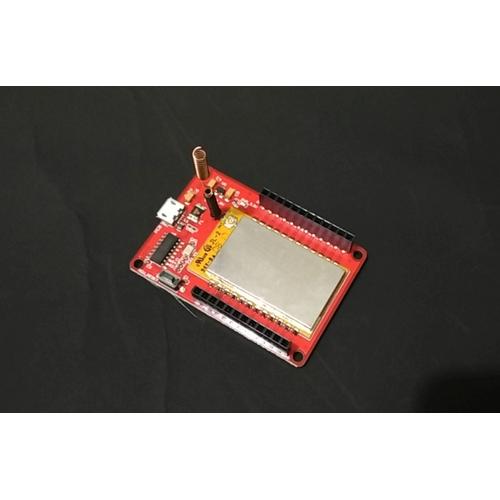

Gambar Dragino Lora mini dev 433Mhz dari Toko Raspberry Pi Kab. Bandung Barat Tokopedia
Gambar Dragino Lora mini dev 433Mhz dari Toko Raspberry Pi Kab. Bandung Barat 1 Tokopedia
Gambar Dragino Lora mini dev 433Mhz dari Toko Raspberry Pi Kab. Bandung Barat 2 Tokopedia
Atur jumlah dan catatan

Stok 6

Tambah Catatan

Subtotal

Rp355.000

Dragino Lora mini dev 433Mhz

Terjual 9
rating 5 (1 ulasan)
Diskusi (5)
Rp355.000
  • Kondisi: Baru
  • Berat: 100 Gram
  • Kategori: Lainnya
  • Etalase: Wireless IoT
LoRa Spec :
168 dB maximum link budget.
+20 dBm - 100 mW constant RF output vs.
+14 dBm high efficiency PA.
Programmable bit rate up to 300 kbps.
High sensitivity: down to -148 dBm.
Bullet-proof front end: IIP3 = -12.5 dBm.
Excellent blocking immunity.
Low RX current of 10.3 mA, 200 nA register retention.
Fully integrated synthesizer with a resolution of 61 Hz.
FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
Built-in bit synchronizer for clock recovery.
Preamble detection.
127 dB Dynamic Range RSSI.
Automatic RF Sense and CAD with ultra-fast AFC.
Packet engine up to 256 bytes with CRC.
Built-in temperature sensor and low battery indicator.

MCU Spec :
MCU: ATMega328P
Flash:32KB
SRAM:2KB
EEPROM:1KB
Clock Speed: 16Mhz

Absolute Maximum Ratings:
VCC: 0.5v ~ 3.9v
Operating Tempature: -40 ~ 85C
I/O pins: 0.5v ~ VCC+0.5V


Common DC Characteristics:
Supply Voltage: 1.8v ~ 3.7v
Operating Tempature: -40 ~ 85C
I/O pins: Refer ATmega328P datasheet

Power Consumption:
Sleep Mode: 22A
RX Mode: 7.2mA
TX Mode: 88mA@ 20dbm

Resource : http://www.dragino.com/products/lora/item/126-lora-mini-dev.html
