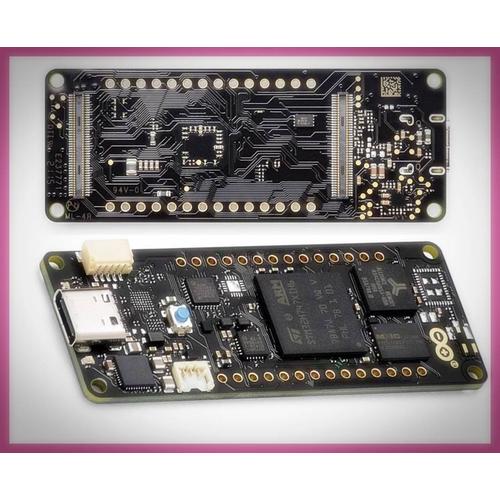

Arduino Portenta H7 Lite
3 orang menyukai barang ini
Rp2.555.000
- Kondisi: Baru
- Berat Satuan: 100 g
- Waktu Preorder: 7 Minggu
- Kategori: Mini PC
- Etalase: Development kit
Arduino Portenta H7 Lite
The Portenta H7 Lite’s main processor is the STM32H747 dual core including a Cortex® M7 running at 480 MHz and a Cortex® M4 running at 240 MHz. The two cores communicate via a Remote Procedure Call mechanism that allows calling functions on the other processor seamlessly.
Both processors share all the in-chip peripherals and can run:
* Arduino sketches on top of the Arm® Mbed™ OS
* Native Mbed™ applications
* MicroPython / JavaScript via an interpreter
* TensorFlow™ Lite
Specs:
MICROCONTROLLER : STM32H747XI dual Cortex®-M7+M4 32bit low power Arm® MCU (datasheet)
SECURE ELEMENT (DEFAULT) : Microchip ATECC608
BOARD POWER SUPPLY (USB/VIN) : 5V
SUPPORTED BATTERY : Li-Po Single Cell, 3.7V, 700mAh Minimum (integrated charger)
CIRCUIT OPERATING VOLTAGE : 3.3V
CURRENT CONSUMPTION :
2.95 μA in Standby mode (Backup SRAM OFF, RTC/LSE ON)
TIMERS : 22x timers and watchdogs
UART : 4x ports (2 with flow control)
ETHERNET PHY : 10 / 100 Mbps (through expansion port only)
SD CARD : Interface for SD Card connector (through expansion port only)
OPERATIONAL TEMPERATURE : -40 °C to +85 °C
MKR HEADERS :
Use any of the existing industrial MKR shields on it
HIGH-DENSITY CONNECTORS :
Two 80 pin connectors will expose all of the board's peripherals to other devices
CAMERA INTERFACE : 8-bit, up to 80 MHz
ADC : 3× ADCs with 16-bit max. resolution (up to 36 channels, up to 3.6 MSPS
DAC : 2× 12-bit DAC (1 MHz)
USB-C : Host / Device, High / Full Speed, Power delivery
The Portenta H7 Lite’s main processor is the STM32H747 dual core including a Cortex® M7 running at 480 MHz and a Cortex® M4 running at 240 MHz. The two cores communicate via a Remote Procedure Call mechanism that allows calling functions on the other processor seamlessly.
Both processors share all the in-chip peripherals and can run:
* Arduino sketches on top of the Arm® Mbed™ OS
* Native Mbed™ applications
* MicroPython / JavaScript via an interpreter
* TensorFlow™ Lite
Specs:
MICROCONTROLLER : STM32H747XI dual Cortex®-M7+M4 32bit low power Arm® MCU (datasheet)
SECURE ELEMENT (DEFAULT) : Microchip ATECC608
BOARD POWER SUPPLY (USB/VIN) : 5V
SUPPORTED BATTERY : Li-Po Single Cell, 3.7V, 700mAh Minimum (integrated charger)
CIRCUIT OPERATING VOLTAGE : 3.3V
CURRENT CONSUMPTION :
2.95 μA in Standby mode (Backup SRAM OFF, RTC/LSE ON)
TIMERS : 22x timers and watchdogs
UART : 4x ports (2 with flow control)
ETHERNET PHY : 10 / 100 Mbps (through expansion port only)
SD CARD : Interface for SD Card connector (through expansion port only)
OPERATIONAL TEMPERATURE : -40 °C to +85 °C
MKR HEADERS :
Use any of the existing industrial MKR shields on it
HIGH-DENSITY CONNECTORS :
Two 80 pin connectors will expose all of the board's peripherals to other devices
CAMERA INTERFACE : 8-bit, up to 80 MHz
ADC : 3× ADCs with 16-bit max. resolution (up to 36 channels, up to 3.6 MSPS
DAC : 2× 12-bit DAC (1 MHz)
USB-C : Host / Device, High / Full Speed, Power delivery
