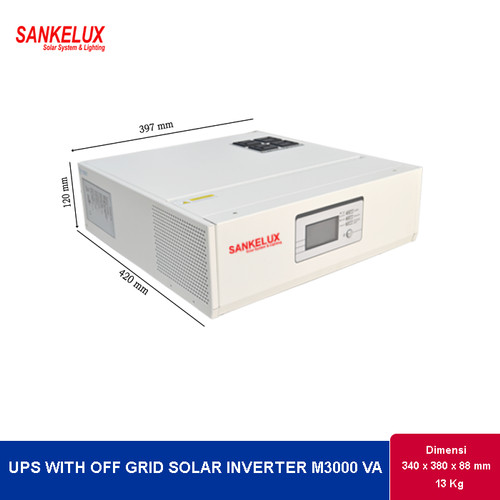

UPS with Off-Grid Solar Inverter M3000 VA (Alfa)

UPS WITH OFF GRID SOLAR INVERTER 3000 VA

SPESIFIKASI

MODEL : A-SLM 3000-24
Rated Power : 3000VA/2400W

INPUT
- Voltage : 230 VAC
- Selectable Voltage Range : 170-280 VAC ( For Personal Computers)
90-280 VAC (For Home Apliances )
- Frequency Range : 50 Hz/60Hz (Auto Sensing)

OUTPUT
- AC Voltage Regulation (Batt Mode) : 230 VAC ± 5%
- AC Voltage Regulation (AVR Mode) : 230 VAC ± 10%
- Surge Power : 6000 VA
- Efficiency (Peak) : 90% ~ 93%
- Transfer Time : 10 ms (For Personal Computers) 20 ms ( For Home Aplications )

- Waveform : Pure sine wave

BATTERY
- Battery Voltage : 24 VDC
- Floating Charge Voltage : 27 VDC
- Overcharge Protection : 32 VDC

SOLAR CHARGER & AC CHARGER
- Maximum PV Array Open Cicuit Voltage : 100 VDC
- Maximum Solar Charger Current : 40 A
- Maximum AC Charge Current : 30 A
- Maximum Charge Current : 70 A

PHYSICAL
- Dimension, D x W x H (mm) : 340 x 380 x 88
- Net Weight (kgs) : 13

OPERATING ENVIRONMENT
- Humidity : 5% to 95% Relative Humidity ( Non-Condensing)
- Operating Temperature : -10°C to 55°C
- Storage Temperature : -15°C to 60°C
- Garansi : 1 Tahun
