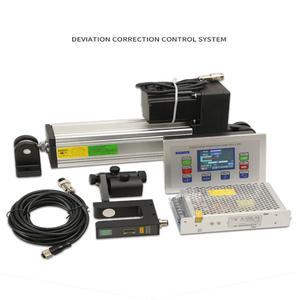

Servo Edge Line Position Control System EPC Web Guide Control system Controller with Color Mark Sensor

Servo Edge Line Position Control System EPC Web Guide Control system Controller with Color Mark Sensor 1005005632088039 Pre-Order +/- Sampai Alamat 10-15 Hari FREE ONGKIR+PAJAK Garansi uang kembali jika Rusak, Beda Produk Usage : Commercial Manufacture Material : Aluminium-copper Alloy is_customized : No Model Number : 02 Type : Power Tool Parts Origin : Mainland China Control Method : DC Servo Driver Power : DC 24V /5A Control Input : DC 0~5A Weight : 1.2 kg Shell material : Aluminum alloy Max thrust : 2000N Driving load : 2000KG Description: Servo web guide Controller EPC-A10 adopts the high-speed 32-bit CPU drive DC servo driver and no-overshot integral variable PI adjustable algorithm. It is of high deviation rectification and fast reaction. In addition, it supports three operation modes: the edge-following, line-following and centre-alignment mode Feature: 1. support three operation modes: edge-following, line-following and center-alignment. 2. support photoelectric sensor, ultrasonic transducer and CCD Sensor 3. detect sensors parameters intelligently, no need to correct the sensor under most circumstances 4. automatic travel measurement, no need to limit the switch mechanically. 5. no overshot integral variable PI algorithm, high accuracy, fast reaction and less error. 6. 0.5msec super-speed of responding 7. analog quantity transducer signal 12bit AD sampling, 700,000 times of sampling per second 8. adopt FIR digital filter and return difference filter, stronger anti-interference capability and more stable signal 9. DC servo motor to push the ball screw 10. power-down memory of all the parameters at any states in the system 11.store 10 groups of parameters from different material, convenient and efficient switchover of material Specification: Correction c
