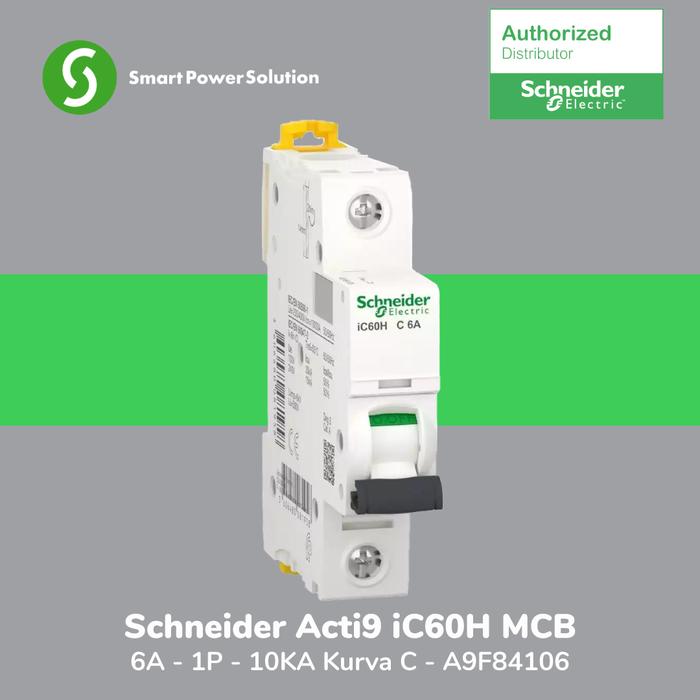

Schneider Acti9 iC60H Mcb 6A - 1P - 10KA Kurva C - A9F84106

#34;Schneider Electric MCB iC60H - Kurva C - 1P 6A - A9F84106 [Deskripsi] Acti 9 iC60H dengan Indikator Pengamanan (VisiTrip amp; VisiSafe) -Kurva C (magnetis trip antara 5 dan 10 In) dengan lebar modul per kutub 18mm. -Ketahanan elektrikal (Electrical Trip) 10.000 kali, dan ketahanan mekanikal (Mechanical Trip) 20.000 kali. -Dapat digunakan untuk jaringan listrik DC (Untuk 1 Pole hingga 72VDC, 2 Pole hingga 125VDC, 3 Pole hingga 180VDC, 4 Pole hingga 250VDC) -Koneksi kabel ke terminal : 1 sampai 25A - gt; maksimum 16 mm2 kabel serabut atau 25 mm2 kabel tunggal. 32 sampai 63A - gt; maksimum 25 mm2 kabel serabut atau 35 mm2 kabel tunggal. [Spesifikasi] 1. [In] rated current : 6 A 2. network type : AC, DC 3. trip unit technology : Thermal-magnetic 4. curve code : C 5. breaking capacity : -70 kA Icu conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz -70 kA Icu conforming to EN/IEC 60947-2 - 12...60 V AC 50/60 Hz -70 kA Icu conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz -10000 A Icn conforming to EN/IEC 60898-1 - 230 V AC 50/60 Hz -15 kA Icu conforming to EN/IEC 60947-2 - 60...72 V DC -20 kA Icu conforming to EN/IEC 60947-2 - 12...60 V DC 6. utilisation category : -Category A conforming to EN 60947-2 -Category A conforming to IEC 60947-2 7. suitability for isolation : -Yes conforming to EN 60947-2 -Yes conforming to IEC 60947-2 -Yes conforming to EN 60898-1 -Yes conforming to IEC 60898-1 8. standards : -EN 60898-1 -EN 60947-2 -IEC 60898-1 -IEC 60947-2 9. network frequency : 50/60 Hz 10. magnetic tripping limit : 8 x In +/- 20 % 11. limitation class : -3 conforming to EN 60898-1 -3 conforming to IEC 60898-1 12. [Ui] rated insulation voltage : -500 V AC 50/60 Hz conforming to IEC 60947-2 -500 V AC 50/60 Hz conforming to EN 60947-2 #34;
