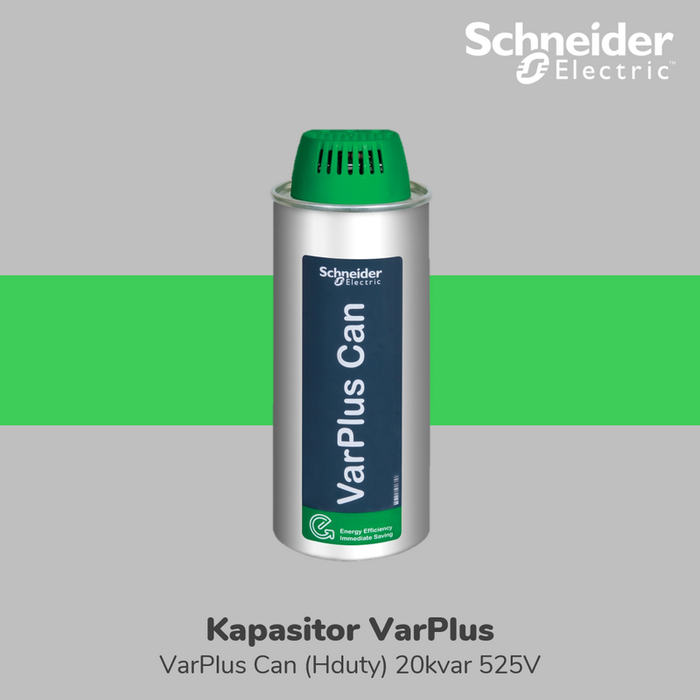

Schneider Electric Kapasitor VarPlus Can 20kvar 525V - BLRCH200A240B52

Terjual 3

bintang 5 (2 rating)

Rp2.413.307
diskon 50%
Harga sebelum diskon Rp4.826.613
  • Kondisi: Baru
  • Berat Satuan: 2,5 kg
  • Min. Beli: 1 Buah
  • Kategori: Capacitor
  • Etalase: Capasitor
[Deskrispi] VarPlus Can Kapasitor LV Schneider Electric dengan keandalan dan keamanan yang luar biasa, masa pakai yang lebih lama, dan kapasitas over-current yang lebih tinggi sehingga cocok sekali untuk jaringan yang terpolusi oleh harmonik yang cukup tinggi. Kapasitor LV Schneider Electric memenuhi IEC60831-1 dan 2, type test, ketahanan suhu terbaik kelas D, fitur aman Pressure Sensitive Disconnection (PSD) sehingga menjamin kualitas kapasitor tertinggi di pasar. [Spesifikasi] 1. product or component type : Capacitor 2. network frequency : 50/60 Hz 3. series name : HDuty 4. network harmonic content : lt;= 20 % 5. Electrical parameters : -20 kvar 525 V 50 Hz -24 kvar 525 V 60 Hz 6. maximum permissible voltage : 1.1 x Un (8 hours over 24 hours) 7. continuous overcurrent capacity : 1.8 x In 8. rated voltage : 525 V AC 50/60 Hz 9. dielectric losses : lt; 0.2 W/kvar 10. power losses : lt; 0.5 W/kVAr 11. capacitance tolerance : - 5 % to 10 % 12. voltage test : -2.15 x Un AC between terminals for 10 s - lt;= 660 V - 3 kV AC between terminal and container for 10 s - gt;= 660 V - 6 kV AC between terminal and container for 10 s 13. inrush current : 250 x In 14. maximum switching operation per year : 7000 15. service life in hours : 130000 h 16. dielectric material : Metallized polypropylene film with Zn/Al alloy, 17. impregnation material : -Non-PCB soft PUR resin -Biodegradable 18. type of installation : Indoor installation 19. connections - terminals : ClampTite terminal 20. mounting mode : Upright/horizontal 21. diameter : 116 mm 22. height : 242 mm 23. net weight : 2.5 kg
