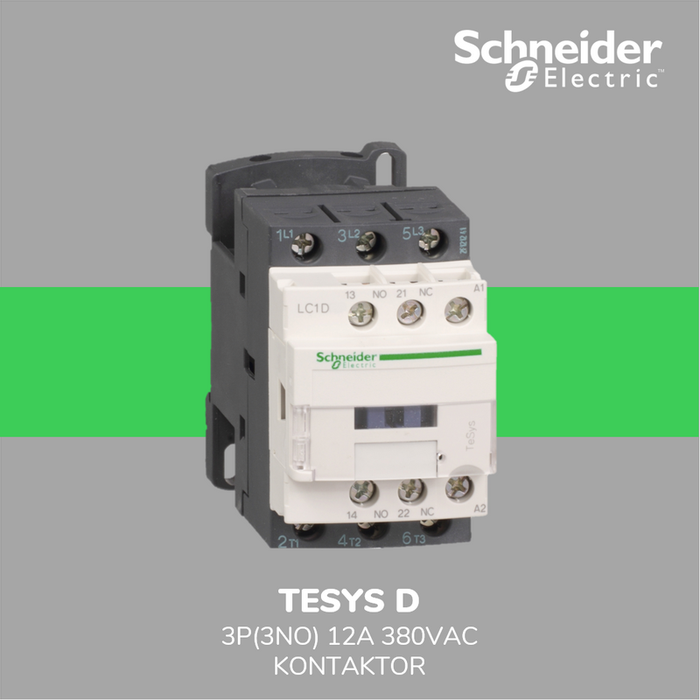

Schneider Electric TeSys D Kontaktor 3P(3NO) 12A 380VAC LC1D12Q7

[Deskripsi] Kontaktor untuk mengontrol motor hingga 150 A (75 kW / 400 V). Kontaktor TeSys D dan kontaktor pembalik tersedia dari 9 A hingga 150 A (motor induktif), dan dari 20 A hingga 200 A (beban resistif) dalam versi 3 kutub dan 4 kutub. [Spesifikasi] 1.product or component type : Contactor 2. device short name : LC1D 3. contactor application : -Resistive load -Motor control 4. utilisation category : -AC-4 -AC-1 -AC-3 5. poles description : 3P 6. power pole contact composition : 3 NO 7. [Ue] rated operational voltage : -Power circuit: lt;= 690 V AC 25...400 Hz -Power circuit: lt;= 300 V DC 8. [Ie] rated operational current : -25 A (at lt;60 °C) at lt;= 440 V AC AC-1 for power circuit -12 A (at lt;60 °C) at lt;= 440 V AC AC-3 for power circuit 9. control circuit type : AC at 50/60 Hz 10. [Uc] control circuit voltage : 380 V AC 50/60 Hz 11. auxiliary contact composition : 1 NO + 1 NC 12. [Ith] conventional free air thermal current : -25 A (at 60 °C) for power circuit -10 A (at 60 °C) for signalling circuit 13. Irms rated making capacity : -250 A at 440 V for power circuit conforming to IEC 60947 -140 A AC for signalling circuit conforming to IEC 60947-5-1 -250 A DC for signalling circuit conforming to IEC 60947-5-1 14. rated breaking capacity : 250 A at 440 V for power circuit conforming to IEC 60947 15. height : 77 mm 16. width : 45 mm 17. depth : 86 mm 18. net weight : 0.32 kg
