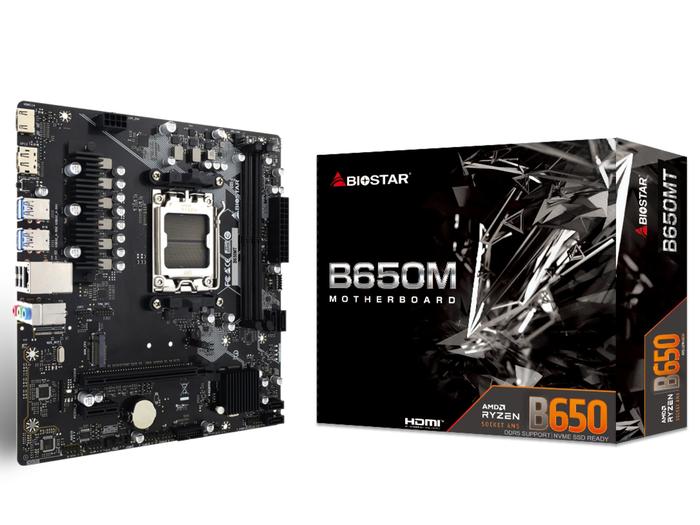

BIOSTAR B650MT (Socket AM5)

Silakan konfirmasi stock sebelum melakukan pembelian :)
Garansi : 3 Tahun


Specification :


Chipset : AMD B650


CPU SUPPORT :
Socket AM5 support AMD Ryzen 7000 / 8000 / 9000 series Processors
Support for future AMD Ryzen processors with BIOS update


MEMORY :
AMD Ryzen 7000 / 8000 / 9000 Series Processors:
Supports Dual Channel DDR5 - 6000+(OC) MT/s, Non-ECC, Un-buffered Memory
2 x DDR5 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Support Intel Extreme Memory Profile (XMP) memory modules and AMD EXTended Profiles for Overclocking (EXPO) memory modules


INTEGRATED VIDEO :
By CPU model
Supports DX12
Supports HDCP

STORAGE :
Total support 1 x M.2 Socket and 4 x SATA (6Gb/s) ports
AMD Ryzen 7000 / 8000 / 9000 Series Processors
1 x M.2 (Key M) Socket (M2M_CPU) :
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCIe 4.0 x 4 (64Gb/s) - NVMe SSD
AMD B650 Chipset
4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10


LAN :
Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability


AUDIO CODEC :
ALC897
7.1 Channels, High Definition Audio, Hi-Fi

USB :
1 x USB 3.2 Gen2 Type-C port (1 via internal headers)
6 x USB 3.2 Gen1 ports (4 on rear I/Os and 2 via internal headers)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)

EXPANSION SLOT :
AMD Ryzen 7000 / 8000 / 9000 Series Processors
1 x PCIe 4.0 x16 Slot (x16 or x8/x8 mode)
AMD B650 Chipset
1 x PCIe 3.0 x1 Slot


REAR I/O :
1 x BIOS UPDATE Button
1 x HDMI Port (HDMI1.4)
1 x DP Port (DP1.2)
4 x USB 3.2 (Gen1) Type-A Ports
2 x USB 2.0 Type-A Ports
1 x Giga LAN port
3 x Audio Jack

INTERNAL I/O :
4 x SATA III Connector (6Gb/s)
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x USB 3.2 (Gen2) Type-C Header
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x CPU water cooling connector (CPU_OPT)
1 x Front Panel Header
1 x Front Audio Header
1 x Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header

H/W MONITORING :
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring

DIMENSION : Micro ATX Form Factor Dimension: 22.1cm x 23.5cm ( W x L )
