INHAND - IG502-FQ58-IO-W-G Spesial Order Metal

Brand : Inhand

Part Number : INHAND - IG502-FQ58-IO-W-G

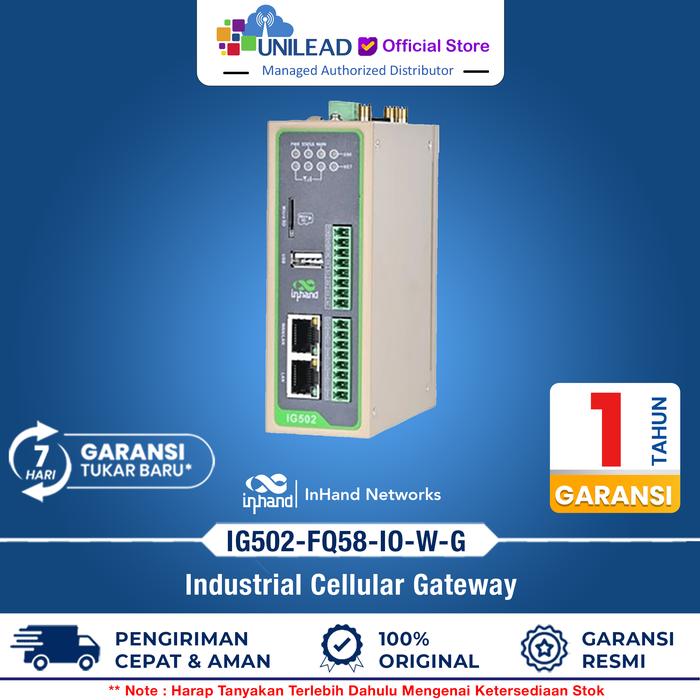

Cloud-ready IIoT LTE Cat 4 Edge Gateway with IO, WiFi, GPS.
CPU :ARM Cortex-A8
RAM : 512MB
FLASH : 8GB eMMC
Ethernet Port :2*10/100Mbps Ethernet port, 1*WAN + 1*LAN/2*LAN
I/O :4*DI, 4*DO
Wi-Fi : 2.4G (802.11 b/g/n)
SIM Card Slot : 1.8V/3V, drawer-type slot*2
TF Card :Micro SD Supported
Antenna : SMA*1
USB : USB 2.0*1
Reset Button : Pinhole reset button
GPS : Satellite location GPS, SMA*1
Installation : Wall mounting, DIN-rail
Housing : Metal housing
Protection Rating : IP30
Cooling : Fan-less cooling
Dimensions(mm) : 127*108.2*35
Power Input : DC 12-48V, polarity reverse protection
Standby Power : 200mA@12V
Working Power : 250mA@12V
Peak Power : 500mA@12V
Power Interface : Industrial terminal block
Operation System : Custom Linux
Network Access : APN, VPDN
Access Authentication : CHAP/PAP/MS-CHAP/MS-CHAP V2
Network Type : LTE CAT4, LTE CAT1
LAN Protocol : ARP, Ethernet
WAN Protocol : Static IP, DHCP, PPPoE
Dial On-demand : Data / SMS / Call activation, scheduled on/offline
IP Application : ICMP, DNS, TCP/UDP, TCP server, DHCP
IP Routing : Static routing
Data Security : OpenVPN, IPSec VPN
User Level : Multi-level user authorization
Backup : Dual SIM
Open Platform : Python development platform
Accessible Cloud Platform : Microsoft Azure, Amazon AWS, etc
Configuration Method : Web
Configuration Backup : Supports import & export of configuration files
