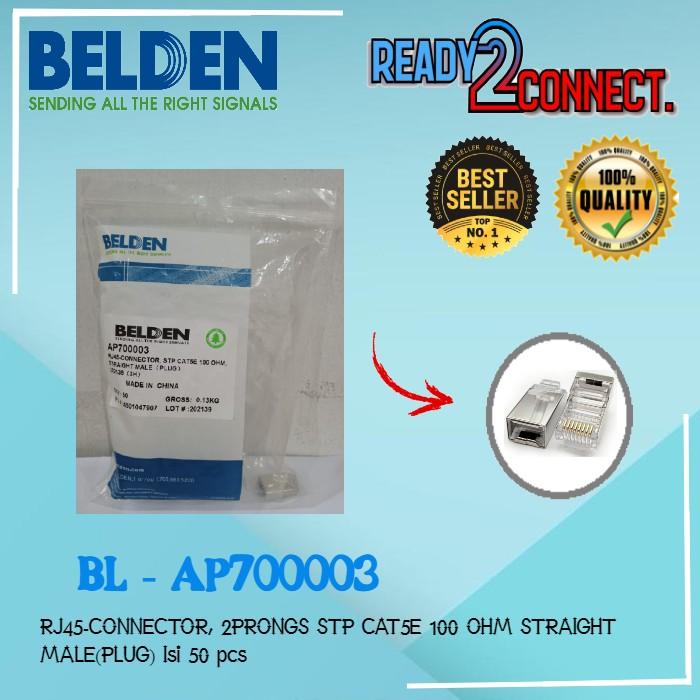

Belden AP700003 Konektor STP RJ45 Cat 5E Isi 50pcs
Terjual 40+
bintang 5 (9 rating)
Rp355.000
Description:
RJ45-Connector, Cat5e/Cat6, 100 ohms, Straight male (plug)
*PHYSICAL CHARACTERISTICS:
Plug Housing PC - Polycarbonate, UL 94V-2 rated
Contact Blade Phosphor bronze plated with 50u’’ gold over 100u’’ nickel undercoat
*ELECTRICAL CHARACTERISTICS:
Current Rating 1.5 A maximum
Characteristic Impendence 100 ohms
Insulation Resistance 100 Mohms Min
Contact Resistance 20mohms Max
Voltage Rating 30 VAC maximum
*MECHNICAL CHARACTERISTICS:
Cable Retention Force 40 lbs Max
Max Insertion and Withdrawal Force 22 N
Humidity 10% to 90% R.H.
*WIRE RANGE:
Conductor Diameters: 0.41mm to 0.51mm (26AWG to 24AWG)
Conductor Type Solid; Stranded
Insulation Diameters: 0.98mm to 1.05mm
Cable Diameters: 5.0mm to 7.0mm
*ENVIRONMENTAL CHARACTERISTICS:
Temperature Range - 10℃ to + 60℃
*APPLICABLE STANDARDS:
UL Specification UL 1863
EIA Specification EIA-364
EU RoHS Compliant (Y/N) Y
RJ45-Connector, Cat5e/Cat6, 100 ohms, Straight male (plug)
*PHYSICAL CHARACTERISTICS:
Plug Housing PC - Polycarbonate, UL 94V-2 rated
Contact Blade Phosphor bronze plated with 50u’’ gold over 100u’’ nickel undercoat
*ELECTRICAL CHARACTERISTICS:
Current Rating 1.5 A maximum
Characteristic Impendence 100 ohms
Insulation Resistance 100 Mohms Min
Contact Resistance 20mohms Max
Voltage Rating 30 VAC maximum
*MECHNICAL CHARACTERISTICS:
Cable Retention Force 40 lbs Max
Max Insertion and Withdrawal Force 22 N
Humidity 10% to 90% R.H.
*WIRE RANGE:
Conductor Diameters: 0.41mm to 0.51mm (26AWG to 24AWG)
Conductor Type Solid; Stranded
Insulation Diameters: 0.98mm to 1.05mm
Cable Diameters: 5.0mm to 7.0mm
*ENVIRONMENTAL CHARACTERISTICS:
Temperature Range - 10℃ to + 60℃
*APPLICABLE STANDARDS:
UL Specification UL 1863
EIA Specification EIA-364
EU RoHS Compliant (Y/N) Y
