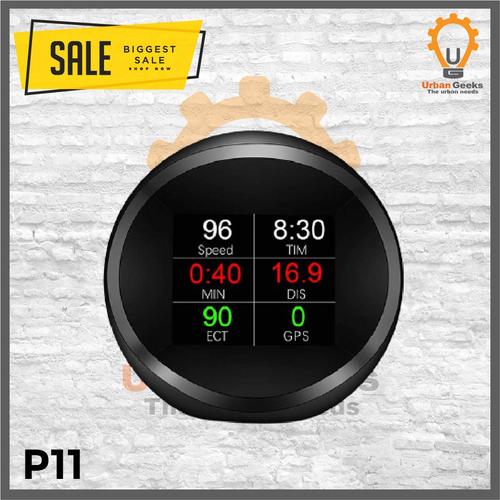

Head Up Display HUD Gauge OBD2 speedometer digital GPS system P11

Technical Parameters

Environment temperature - 40 0C— +80 0C

Barometric press:86-106KPa

Relative humidity:10%-95%

Environment voice:<=60dB

Alarm of sound level:>=30dB(A)

OBD2 Work voltage:9V~16Vdc(12Vdc/400mA)

GPS Work voltage : > 24V

Size of product:65x55.5x63mm

Weight of product:250g

Accessories:

1* HUD body,

1* OBD cable

1*USB cable

1* anti-slip mat,

1* English Manual

P11 product description:

OBD functions: vehicle speed(Km/h or MPH),engine RPM,water temperature(°C or
°F),battery voltage,clock, fuel consumption,trip distance ,trip time ,ODO meter,
clock,Kilometers per liter ,oil temperature, turbine pressure, air fuel ratio,
intake pressure,gps satellite numbers, altitude,driving direction, speed up
test, brake test , display detail fault code in text, and clear the fault
code,and 48 professional date stream((DTCs Starus, Freeze DTCs, Loop Status,
Engine Load,Coolant Temp,Fuel Trim,Fuel Rail Press, Intake Pressure, Tacho,
Speed, Ignition, Intake AirTemp, MAF Rate, Throttle Pos, Oxygen Sensor, OBD
Type, Aux Input Status, Engine Run time, Mil distance, FRP Ref Manifo, Fuel
Level, Warm-ups Count, Distance, Barometric Pre, Air Temperature, Battery
Voltage, ODO Distance, Trip Distance, Trip Drive Time, Average Speed, LPH, LHK))

OBD2 Alarms: Over speed alarm, RPM Alarm, Battery Voltage alarm,Water
temperature alarm, error code Alarm



GPS information: vehicle speed(Km/h or MPH),battery voltage,trip time,trip
distance,clock,driving direction,altitude, gps satellite numbers

Alarms: battery voltage alarm,over speed alarm

Features: 9 display interfaces, mini size, spherical OBD Gauge,manual or auto
adjust the brightness
