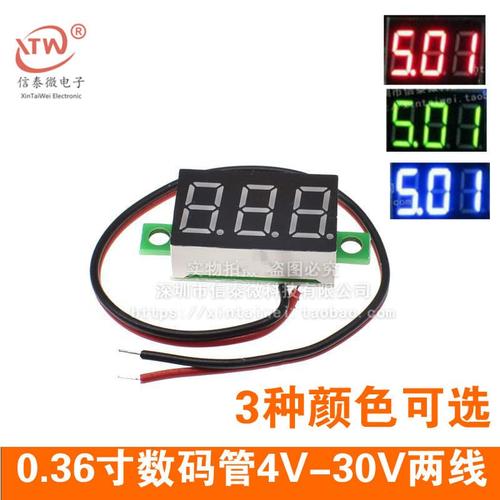

0.36 inch mini digital 2.7V-32V two-wire precision variable

Terjual 199
rating 4.8 (55 ulasan)
Diskusi (8)
Rp13.900
  • Kondisi: Baru
  • Berat: 6 Gram
  • Kategori: Lainnya
  • Etalase: LCD - LED
Ready :
RED (merah)
BLUE (biru)


Ultra-low starting voltage, red minimum 4.8 V , the lowest green 2.7V , blue lowest 3.0V . Supply voltage is lower than 3.5V , the brightness degradation only, but does not affect measurement accuracy.
Having reverse protection, reverse does not burn.
Technical Parameters:
Measuring range
Red DC4.80V-30.0V , green DC2.70-32.0V , blue DC3.00-30.0V
Power range
No additional power supply, directly affected by the measured voltage as a power source, the range above
Maximum input
DC32.0V . Note: The input voltage is higher than 32V could permanently damage!
Allowable error
0.1% , automatic decimal point shift
Measuring voltage > = 10.0V , the measurement error is +/- 0.1V
Measuring voltage <= 9.99V , the measurement error is +/- 0.02V
input resistance
> 100K Euro
Working current
Red 23mA , green 18mA , blue 13mA
Refresh rate
About 300mS time
Display method
Three 0.36 "LED digital tube
Color Display
Red, blue, green optional
Lead Length
15cm
Dimensions
15 X 10 mm X 23 , length X width X thickness (excluding the ears);
Including installation ear length: 33mm
SecureDresshole
Pitch: 28mm , aperture: 2.8mm
Net weight
4.7g
Gross weight
5.3g
Operating temperature
-10 Deg.] C ~ 65 deg.] C
