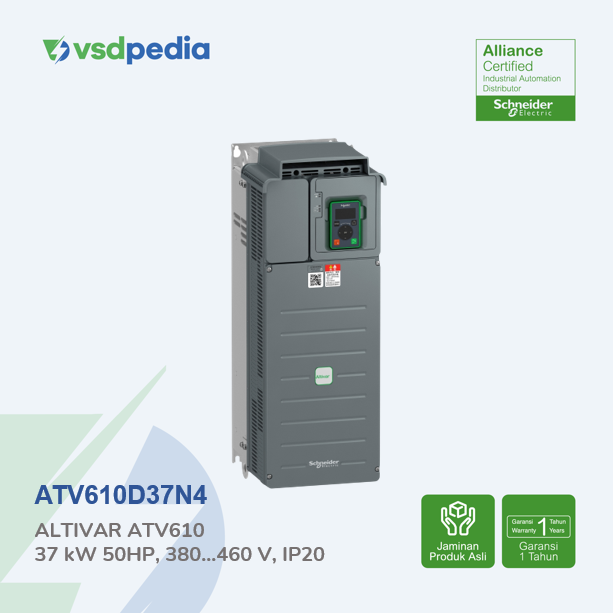

SCHNEIDER ALTIVAR ATV610 INVERTER VSD VFD 37kW 50HP 380-460VAC 3PH IP20 ATV610D37N4
Terjual 16
bintang 5 (6 rating)
Rp35.455.500
diskon 51%
Harga sebelum diskon Rp72.611.000
- Kondisi: Baru
- Berat Satuan: 40,5 kg
- Min. Beli: 1 Buah
- Kategori: Motor Starter
- Etalase: ATV610
ATV610D37N4
Variable Speed Drive ATV610 - 37kW/50HP - 380...415V - IP20
100% Produk Original Schneider dan Garansi Resmi 12 Bulan
TENTANG PRODUK
This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 37kW / 50hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 30kW / 40hp for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive “products” IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 26.8kg and its dimensions are, 226mm wide, 613mm high, 271mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.
SPESIFIKASI
= Main =
1. Range of product : Easy Altivar 610
2. Product or component type : Variable speed drive
3. Product specific application : Fan, pump, compressor, conveyor
4. Device short name : ATV610
5. Variant : Standard version
6. Product destination :
- Asynchronous motors
- Synchronous motors
7. Mounting mode : Cabinet mount
8. EMC filter : Integrated conforming to IEC 61800-3 category C3 with 50 m
9. IP degree of protection : IP20
10. type of cooling : Forced convection
11. Supply frequency : 50...60 Hz +/-5 %
12. Network number of phases : 3 phases
13. [Us] rated supply voltage : 380...460 V - 15...10 %
14. Motor power kW :
- 37 kW for normal duty
- 30 kW for heavy duty
15. Motor power hp :
- 50 hp for normal duty
- 40 hp for heavy duty
16. Line current :
- 76.6 A at 380 V (normal duty)
- 68.3 A at 460 V (normal duty)
- 65.8 A at 380 V (heavy duty)
- 56.8 A at 460 V (heavy duty)
17. Prospective line Isc : 22 kA
18. Apparent power :
- 54.4 kVA at 460 V (normal duty)
- 45.2 kVA at 460 V (heavy duty)
19. Continuous output current :
- 74.5 A at 4 kHz for normal duty
- 59.6 A at 4 kHz for heavy duty
20. Maximum transient current :
- 82 A during 60 s (normal duty)
- 89.4 A during 60 s (heavy duty)
21. Asynchronous motor control profile :
- Constant torque standard
- Optimized torque mode
- Variable torque standard
22. Output frequency : 0.1…500 Hz
23. Nominal switching frequency : 4 kHz
24. Switching frequency : 2...12 kHz adjustable
25. number of preset speeds : 16 preset speeds
26. Communication port protocol : Modbus serial
27. Option card :
- Slot A: communication card, Profibus DP V1
- Slot A: digital or analog I/O extension card
- Slot A: relay output card
Variable Speed Drive ATV610 - 37kW/50HP - 380...415V - IP20
100% Produk Original Schneider dan Garansi Resmi 12 Bulan
TENTANG PRODUK
This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 37kW / 50hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 30kW / 40hp for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive “products” IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 26.8kg and its dimensions are, 226mm wide, 613mm high, 271mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.
SPESIFIKASI
= Main =
1. Range of product : Easy Altivar 610
2. Product or component type : Variable speed drive
3. Product specific application : Fan, pump, compressor, conveyor
4. Device short name : ATV610
5. Variant : Standard version
6. Product destination :
- Asynchronous motors
- Synchronous motors
7. Mounting mode : Cabinet mount
8. EMC filter : Integrated conforming to IEC 61800-3 category C3 with 50 m
9. IP degree of protection : IP20
10. type of cooling : Forced convection
11. Supply frequency : 50...60 Hz +/-5 %
12. Network number of phases : 3 phases
13. [Us] rated supply voltage : 380...460 V - 15...10 %
14. Motor power kW :
- 37 kW for normal duty
- 30 kW for heavy duty
15. Motor power hp :
- 50 hp for normal duty
- 40 hp for heavy duty
16. Line current :
- 76.6 A at 380 V (normal duty)
- 68.3 A at 460 V (normal duty)
- 65.8 A at 380 V (heavy duty)
- 56.8 A at 460 V (heavy duty)
17. Prospective line Isc : 22 kA
18. Apparent power :
- 54.4 kVA at 460 V (normal duty)
- 45.2 kVA at 460 V (heavy duty)
19. Continuous output current :
- 74.5 A at 4 kHz for normal duty
- 59.6 A at 4 kHz for heavy duty
20. Maximum transient current :
- 82 A during 60 s (normal duty)
- 89.4 A during 60 s (heavy duty)
21. Asynchronous motor control profile :
- Constant torque standard
- Optimized torque mode
- Variable torque standard
22. Output frequency : 0.1…500 Hz
23. Nominal switching frequency : 4 kHz
24. Switching frequency : 2...12 kHz adjustable
25. number of preset speeds : 16 preset speeds
26. Communication port protocol : Modbus serial
27. Option card :
- Slot A: communication card, Profibus DP V1
- Slot A: digital or analog I/O extension card
- Slot A: relay output card
