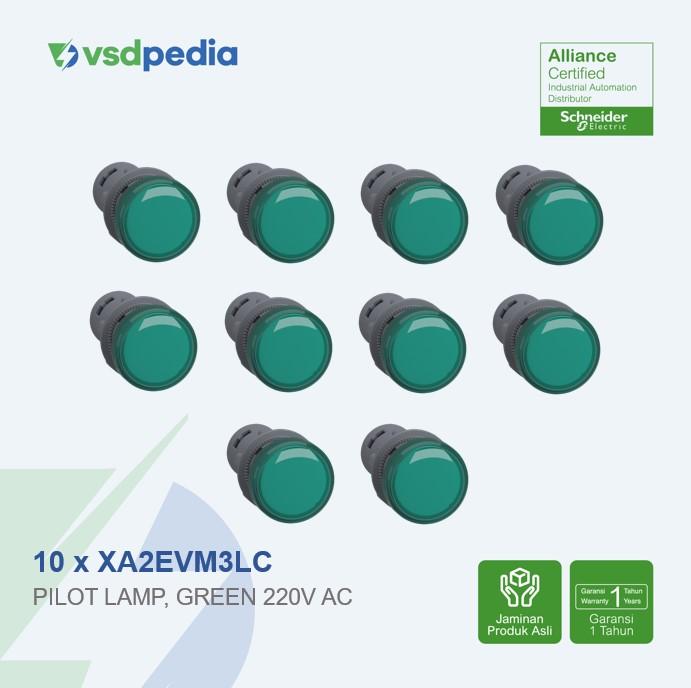

Schneider Electric Medium XA2 Pilot Light,220v AC,Green XA2EVM3LC x 10

XA2EVM3LC (BUNDLE 10 PC)
Round Pilot Light ø 22 - Green - Integral LED - 220 V AC- Screw Clamp Terminals

Barang Original Schneider 100% dan Bergaransi Resmi 12 Bulan

TENTANG PRODUCT
This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This monolithic green pilot light comes with integral LED. This single component pilot light provides clear visual feedback on the status of machines. This pilot light has a 220V to 230V AC rating. This is a plastic component and weighs 0.02kg. It is an IP65 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is sold in lots of 10. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.

SPESIFIKASI
= Main =
1. Range of product : Easy Harmony XA2
2. Product or component type : Monolithic pilot light
3. Device short name : XA2
4. Mounting diameter : 22.5 mm
5. Shape of signaling unit head : Round
6. Cap/operator or lens colour : Green
7. Light source : LED
8. Bulb base : Integral LED
9. [Us] rated supply voltage : 220...230 V AC 50/60 Hz
= Complementary =
1. Terminals description ISO n°1 : (X1-X2)PL
2. Device mounting : Fixing hole 22.3 +0.4/0 conforming to IEC 60947-5-1
3. Fixing center :
- >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm
- >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm
4. Fixing mode : Fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m)
5. Marking :
- CE
- CCC
6. [Us] rated supply voltage : 220...230 V
7. Connections - terminals :
- Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
- Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1
8. Tightening torque : 0.8…1 N.m conforming to IEC 60947-1
9. Shape of screw head :
- Cross compatible with Philips No 2 screwdriver
- Slotted compatible with flat Ø 4 mm screwdriver
- Slotted compatible with flat Ø 5.5 mm screwdriver
10. [Ui] rated insulation voltage : 400 V (pollution degree 3) conforming to IEC 60947-1
11. [Uimp] rated impulse withstand voltage : 6 kV conforming to IEC 60947-1
12. Signalling type : Steady
13. Supply voltage limits : 0.8…1.2 V AC
14. Current consumption : <= 20 mA
15. Service life : 40000 h at rated voltage and 25 °C
16. Height : 29 mm
17. Width : 29 mm
18. Depth : 53 mm
19. Product weight : 0.02 kg
= Environment =
1. Ambient air temperature for storage : -40…70 °C
2. Ambient air temperature for operation : -25…70 °C
3. Overvoltage category : Class I conforming to IEC 536
4. IP degree of protection : IP65 conforming to IEC 60529
5. IK degree of protection : IK05
6. Standards :
- IEC 60947-1
- IEC 60947-5-1
- GB 14048.5
- GB 14048.1
- IEC 60529
- IEC 50102
7. Product certifications :
- CE
- CCC
8. Vibration resistance : 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
9. Shock resistance : 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
