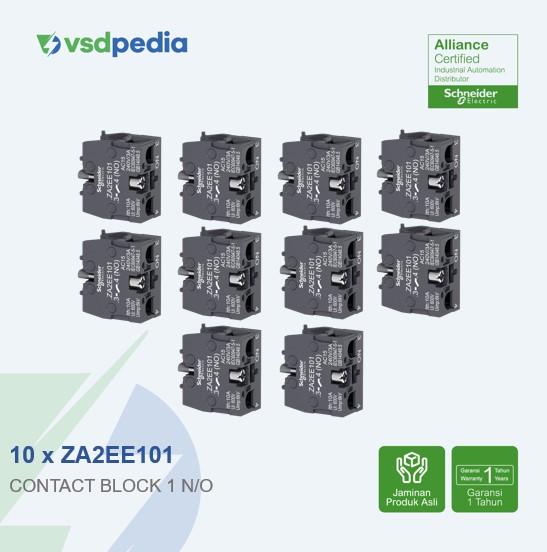

Schneider Electric XA2 Contact Block 22mm 1NO ZA2EE101 x 10

ZA2EE101 (BUNDLE 10 PC)
Single Contact Block For Head ø22 - 1 N/O

Barang Original Schneider 100% dan Bergaransi Resmi 12 Bulan

TENTANG PRODUCT
This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XA2 complete push-button units and selector switches and connects to control circuits with simple screw-clamp connections. It has 1 NO contact with slow-break operation. It uses silver alloy contact material. It protects operators from unexpected contact with live circuits due to its IP20 protection index. It is designed for 1.5 million cycle operation. It is an IP20 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is easily installed and replaced with simple screw-clamp connections.

SPESIFIKASI
= Main =
1. Range of product : Easy Harmony XA2
2. Product or component type : Contact block
3. Device short name : ZA2E
= Complementary =
1. Contact operation : Slow-break
2. Contact block type : Single
3. Contacts usage : Standard contacts
4. Positive opening : Without
5. Mechanical durability : 1500000 cycles
6. Connections - terminals :
- , <= 2 x 1.5 mm² conforming to IEC 60947-1
- , <= 1 x 2.5 mm² conforming to IEC 60947-1
- , >= 1 x 0.5 mm² conforming to IEC 60947-1
- Faston terminals, connection size: 6.3 mm conforming to IEC 60947-1
7. Tightening torque : 0.8 N.m
8. Contacts material : Silver alloy (Ag/Ni)
9. Short-circuit protection : 10 A fuse type gL conforming to IEC 60269-1
10. [Ith] conventional free air thermal current : 10 A conforming to IEC 60947-5-1
11. [Ui] rated insulation voltage : 600 V (pollution degree 3) conforming to IEC 60947-1
12. [Uimp] rated impulse withstand voltage : 6 kV conforming to IEC 60947-1
13. [Ie] rated operational current :
- 2 A at 230 V, AC-15, A600 conforming to IEC 60947-5-1
- 0.2 A at 110 V, DC-13, Q600 conforming to IEC 60947-5-1
14. Electrical durability :
- 500000 cycles, AC-15, 2 A at 230 V, operating rate
- 500000 cycles, DC-13, 0.2 A at 110 V, operating rate
15. Contacts type and composition : 1 NO
= Environment =
1. Protective treatment : TC
2. IP degree of protection : IP20 conforming to IEC 60529
3. Standards :
- IEC 60947-1
- IEC 60947-5-4
- IEC 60529
- IEC 60947-5-1
4. Product certifications :
- CE
- CCC
5. Ambient air temperature for storage : -40…70 °C
6. Ambient air temperature for operation : -25…55 °C
