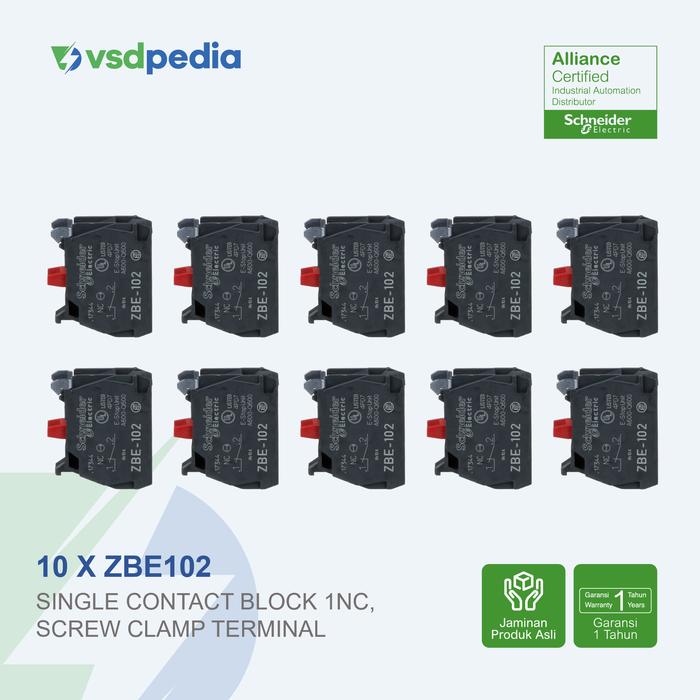

SCHNEIDER ELECTRIC ZBE102 SINGLE CONTACT BLOCK 1 NC SCREW CLAMP TERMINAL KONTAK TAMBAHAN XB4 XB5 (10 PCS)

ZBE102 (BUNDLE 10 PC)
Single Contact Block For Head ø22 1 NC Silver Alloy Screw Clamp Terminal

Barang Original Schneider 100% dan Bergaransi Resmi 12 Bulan

TENTANG PRODUCT
This Harmony ZB, XB5 single contact block contact block uses screw clamp terminals. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB5 complete push-button units and selector switches via a clip assembly and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

SPESIFIKASI
= Main =
1. Range of product :
- Harmony XB4
- Harmony XB5
2. Product or component type : Contact block
3. Device short name : ZBE
4. Sale per indivisible quantity : 5
5. IP degree of protection : IP20 conforming to IEC 60529
6. Contact operation : Slow-break
7. Contact block type : Single
8. Contacts usage : Standard contacts
9. Connections - terminals :
- Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
- Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
= Complementary =
1. Product weight : 0.011 kg
2. Contacts type and composition : 1 NC
3. Positive opening : With conforming to IEC 60947-5-1 appendix K
4. Operating travel :
- 1.5 mm (NC changing electrical state)
- 4.3 mm (total travel)
5. Operating force : 2 N NC changing electrical state
6. Mechanical durability : 10000000 cycles
7. Tightening torque : 0.8…1.2 N.m conforming to IEC 60947-1
8. Shape of screw head :
- Cross compatible with pozidriv No 1 screwdriver
- Slotted compatible with flat Ø 4 mm screwdriver
- Slotted compatible with flat Ø 5.5 mm screwdriver
9. Contacts material : Silver alloy (Ag/Ni)
10. Short-circuit protection : 10 A cartridge fuse type gG conforming to IEC 60947-5-1
11. [Ith] conventional free air thermal current : 10 A conforming to IEC 60947-5-1
12. [Ui] rated insulation voltage : 600 V (pollution degree 3) conforming to IEC 60947-1
13. [Uimp] rated impulse withstand voltage : 6 kV conforming to IEC 60947-1
14. [Ie] rated operational current :
- 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
- 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1
- 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1
- 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1
- 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1
- 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
15. Electrical durability :
- 1000000 cycles, AC-15, 2 A at 230 V, operating rate
- 1000000 cycles, AC-15, 3 A at 120 V, operating rate
- 1000000 cycles, AC-15, 4 A at 24 V, operating rate
- 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate
- 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate
16. Mounting of block : Front mounting
17. Electrical composition code :
- C1 (quantity <= 9)
- C2 (quantity <= 7)
- C3 (quantity <= 6)
- C4 (quantity <= 4)
- C5 (quantity <= 5)
- C6 (quantity <= 3)
- C7 (quantity <= 4)
- C8 (quantity <= 2)
- C9 (quantity <= 3)
- C12 (quantity <= 6)
- M1 (quantity <= 6)
- M2 (quantity <= 4)
- M3 (quantity <= 4)
- M5 (quantity <= 2)
- M6 (quantity <= 2)
- M7 (quantity <= 6)
- M8 (quantity <= 4)
- M9 (quantity <= 2)
- SF1 (quantity <= 3)
- SF2 (quantity <= 2)
- MF1 (quantity <= 2)
- MF2 (quantity <= 2)
- C10 (quantity <= 2)
- M4 (quantity <= 2)
- C13 (quantity <= 1)
18. Device presentation : Basic element
= Environment =
1. Protective treatment : TH
2. Ambient air temperature for storage : -40…70 °C
3. ambient air temperature for operation : -40…70 °C
4. Standards :
- IEC 60947-5-1
- CSA C22.2 No 14
- JIS C8201-5-1
- IEC 60947-1
- UL 508
- IEC 60947-5-4
- JIS C8201-1
5. Product certifications :
- CSA
- GOST
- BV
- DNV
- LROS (Lloyds register of shipping)
- CCC
- UL
6. Vibration resistance : 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
7. Shock resistance :
- 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
- 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
